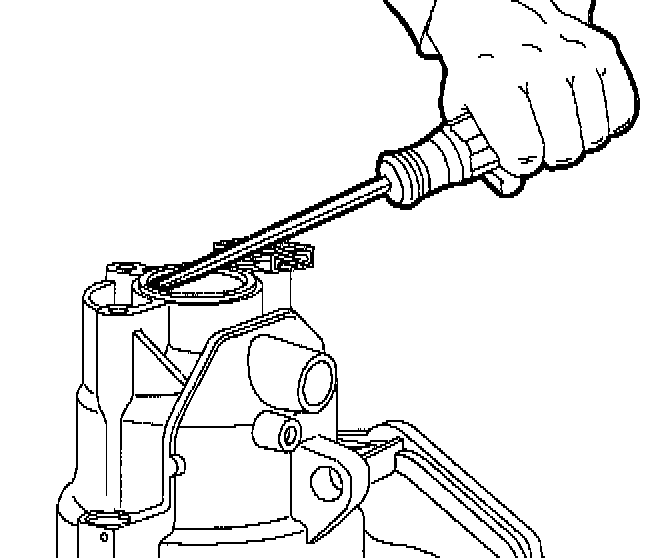

39. Right Hand Axle Seal Removal





NOTICE: Be careful not to damage case bore with screwdriver.

Use a screwdriver in order to remove right hand axle seal from transaxle case. If necessary, crush the seal first with the screwdriver in order to loosen the seal from the case.
