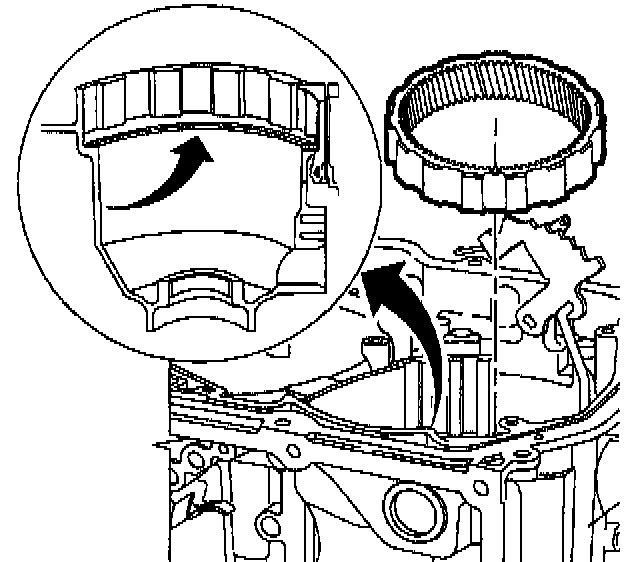

34. Final Drive Internal Gear Removal

IMPORTANT: The fretting ring is in the case ring groove. Do not remove the fretting ring unless it appears damaged.

IMPORTANT: Observe top/bottom orientation of internal gear so it can be reinstalled in the same manner.

Remove final drive internal gear.
