Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Transaxle Assembly Disassembly >> 25. 2ND Clutch Plates Removal

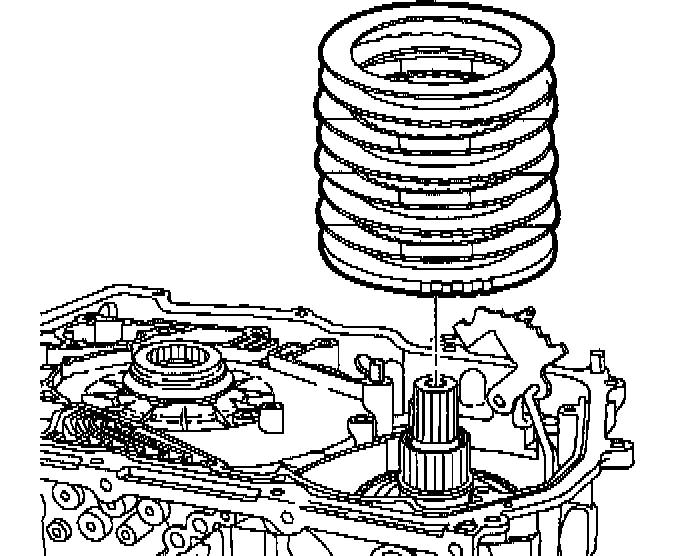

25. 2ND Clutch Plates Removal





Remove following plates:
- 2nd clutch wave plate.
- 2nd clutch steel plates.
- 2nd clutch fiber plates.
- 2nd clutch backing plate.
