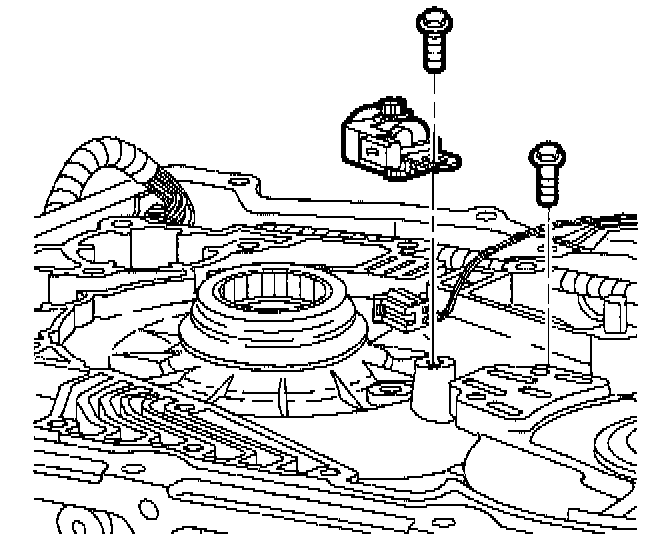

22. Input Speed Sensor Removal
22. Input Speed Sensor Removal
1.
Remove wiring harness connector at input speed sensor.
2.
Remove input speed sensor bolt and input speed sensor.
3.
Remove wire retainer clip bolt and retainer clip.
