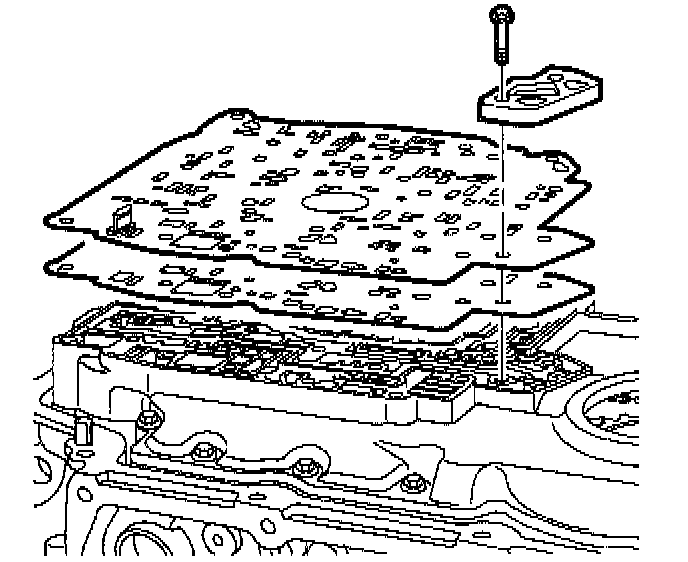

16. Spacer Plate and Gasket Removal
16. Spacer Plate and Gasket Removal
1.
Remove spacer plate support bolts.
2.
Remove spacer plate support.
3.
Remove spacer plate with spacer plate filter attached.
4.
Remove and discard spacer plate to
channel plate
gasket.
