11. Output Shaft Sleeve Removal

Tools Required
- SA9211T2 5th Gear Remover





NOTICE: Do not remove the output shaft in the same manner as the stub shaft. In order to remove the output shaft, you must completely disassemble the transaxle. Removing the output shaft at this time will damage other transaxle components.

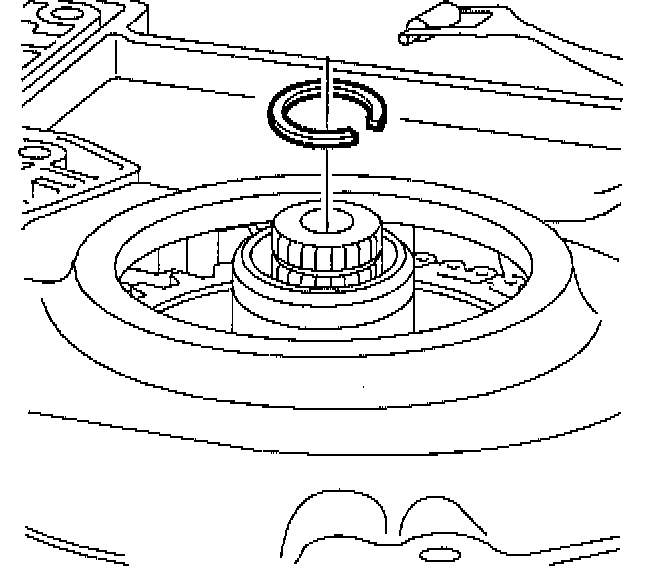

1. Remove snap ring.

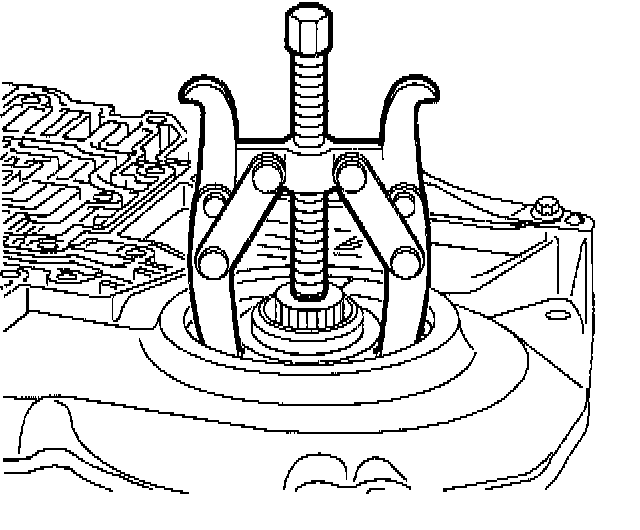

2. Insert the legs of SA921 1T2 under output shaft sleeve.
3. Tighten center bolt of SA9211T2 down in order to pull the output shaft sleeve off the output shaft.
4. Remove and discard output shaft sleeve. The output shaft sleeve is not reusable.
