78. Torque Converter Installation
78. Torque Converter Installation

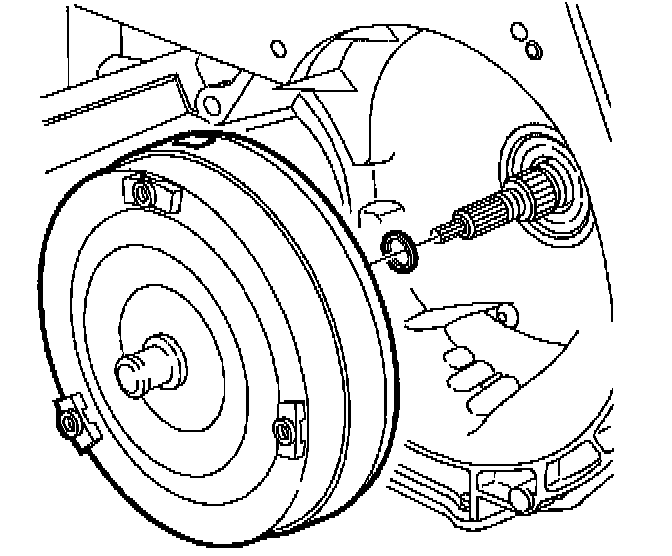

1.
Install a new
turbine shaft
O-ring on end of turbine shaft.
2.
Install torque converter onto transaxle.
3.
Remove transaxle from holding fixture.
