77. Oil Pan and Gasket Installation

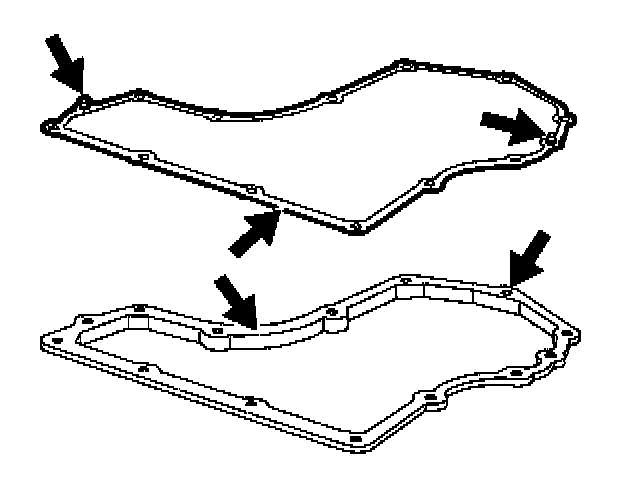

1. Inspect oil pan for cracks, dents or damage to gasket sealing surface.
2. Inspect gasket for cuts or other damage. The bottom pan gasket is reusable if not damaged.
3. Clean and dry bottom pan, gasket and magnet.





4. Install gasket and bottom pan onto transaxle case.
5. Hand start and install bottom pan bolts.
Torque: 12 Nm (9 ft. lbs.)
