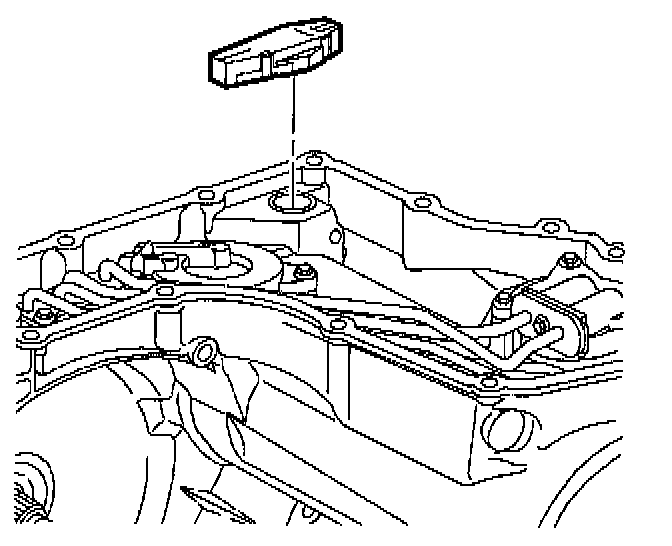

76. Oil Level Control Valve Installation





NOTICE: Push straight down on center of oil level control valve in order to prevent damage to case bore.

Install oil level control valve into transaxle case.
