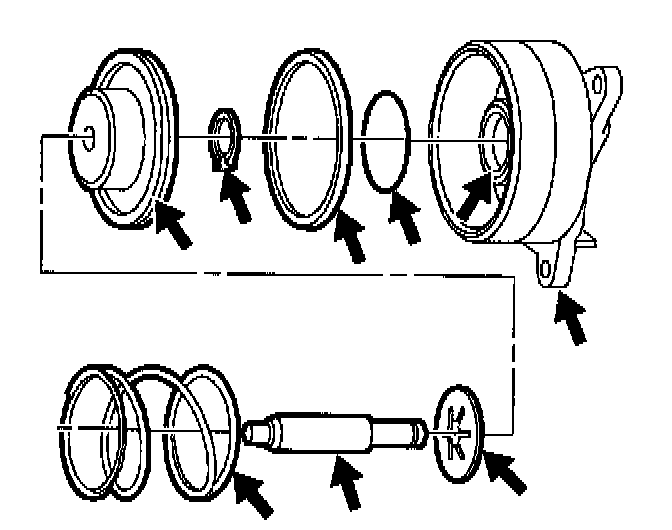

72. Low and Reverse Servo Disassemble

1. Remove piston pin assembly from servo cover.
2. Remove snap ring from servo pin.
3. Remove piston and servo cushion springs from servo pin.
4. Remove servo piston seals from cover.
5. Discard servo piston seals.
6. Inspect all components for damage.
7. Inspect fluid feed holes for proper opening.
8. Inspect bolt hole threads for debris or stripping.
9. Inspect seal grooves for damage.
10. Clean and dry all components.
