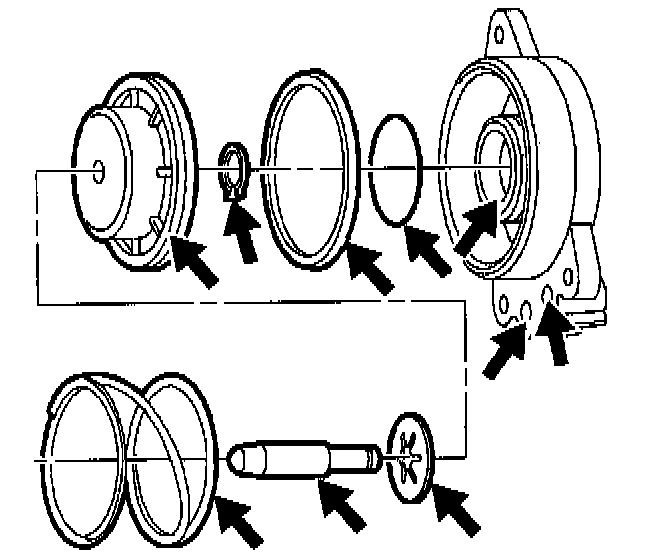

70. Intermediate/4TH Servo Disassemble

1. Remove piston and pin assembly from servo cover.
2. Remove snap ring from servo pin.
3. Remove piston and servo cushion springs from servo pin.
4. Remove servo piston seals from servo cover.
5. Discard servo piston seals. Do not reuse servo piston seals.
6. Inspect all components for damage.
7. Inspect fluid feed holes for proper opening.
8. Inspect bolt hole threads for debris and stripping.
9. Inspect seal grooves for damage.
10. Clean and dry each component.
