68. Right Hand Axle Seal Assemble

Tools Required
- J41102 Axle Seal Installer





IMPORTANT: The J41102 must be used in order to install seal correctly. J41102 installs axle seal to a given depth.

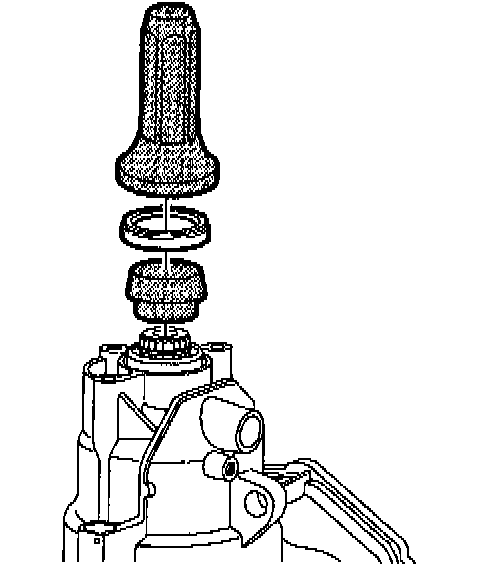

1. Install a new side cover axle seal into side cover. Use J41102.
2. In order to prevent damage to shaft splines during vehicle operation, add grease (P/N 7843867) to splines on output shaft.
