59. Control Valve Body Assemble

1. Install 1-2 shift valve spring, 1-2 shift valve, 1-2 shift solenoid with O-ring, and 1-2 shift solenoid retainer clip.

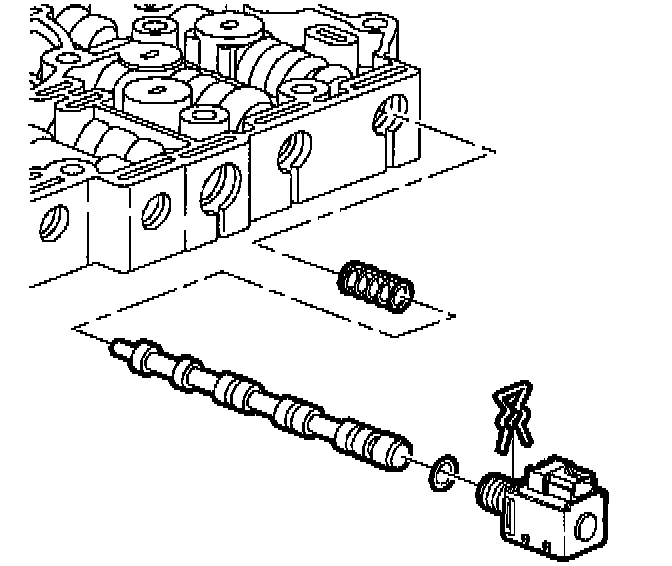

2. Install 2-3 shift valve spring, 2-3 shift valve, 2-3 shift solenoid with O-ring, and 2-3 shift solenoid retainer clip.

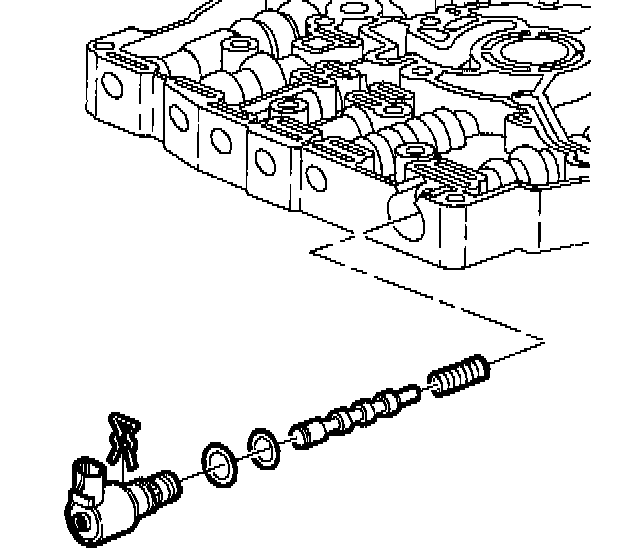

3. Install torque signal regulator spring, torque signal regulator valve, Pressure Control Solenoid (PCS) with two O-rings and screen, and PCS retainer clip.

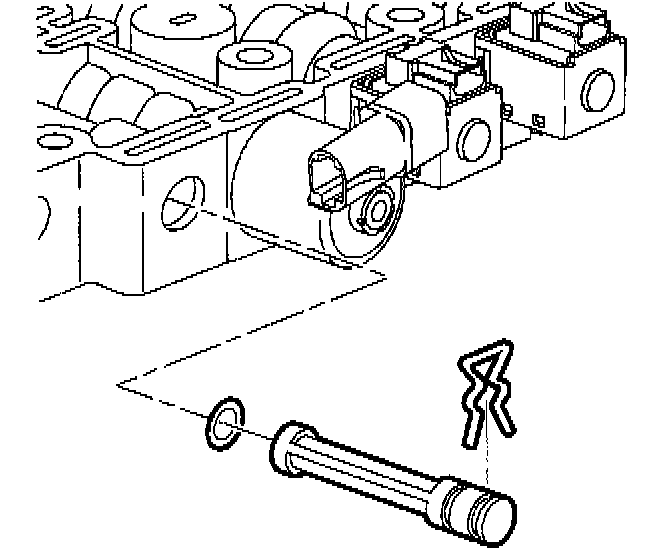

4. Install actuator oil filter with O-ring, and actuator oil filter retainer clip.

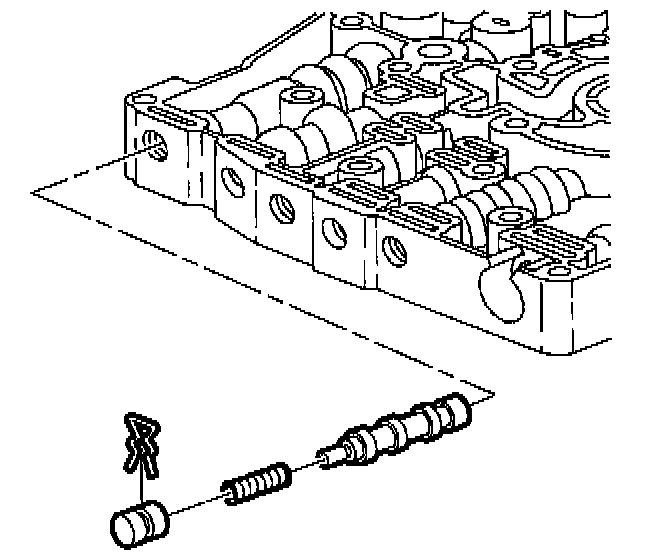

5. Install actuator feed limit valve, actuator feed limit spring, bore plug, and actuator feed limit valve retainer clip.

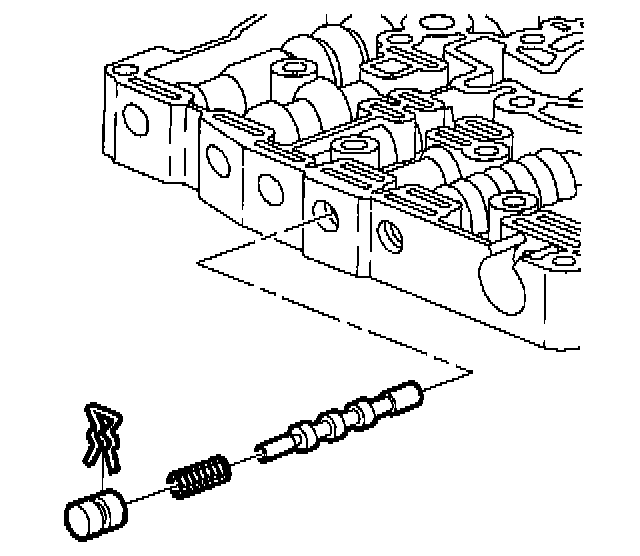

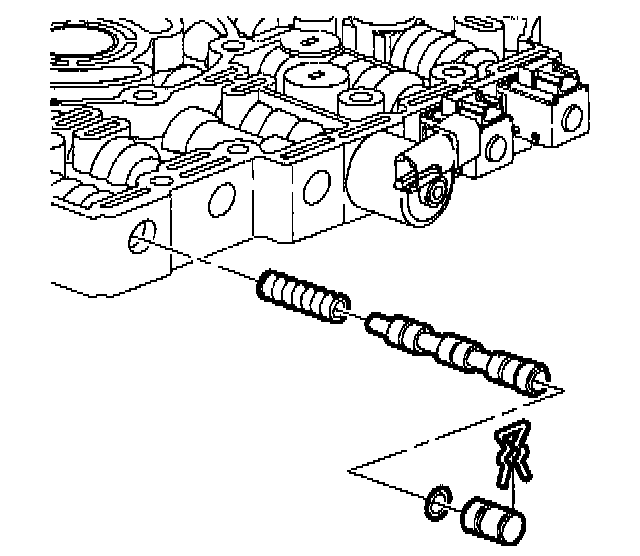

6. Install 3-4 shift valve spring, 3-4 shift valve, bore plug with O-ring, and 3-4 shift valve retainer clip.





7. Install accumulator valve, plug, and 1-2/3-4 accumulator valve retainer clip.

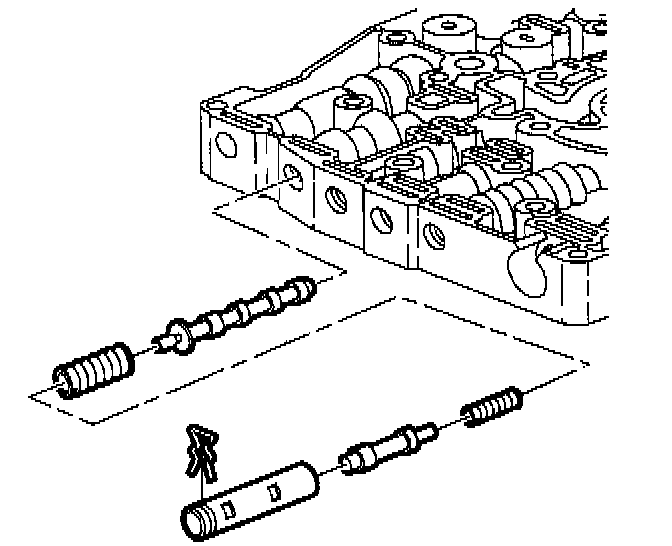

8. Install pressure regulator valve, pressure regulator valve spring, isolator spring, pressure regulator boost valve, bushing, and pressure regulator valve retainer clip.





9. Install 2-3 accumulator valve, 2-3 accumulator valve spring, 2-3 accumulator valve bore plug, and 2-3 accumulator valve retainer clip.

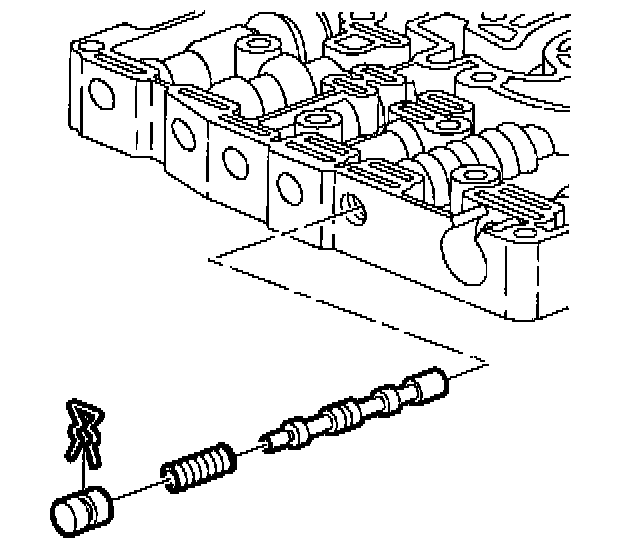

10. Install TCC feed limit valve, spring, bore plug, and TCC feed limit valve retainer clip.





11. Install TCC control valve, spring, bore plug, and TCC control valve retainer clip.

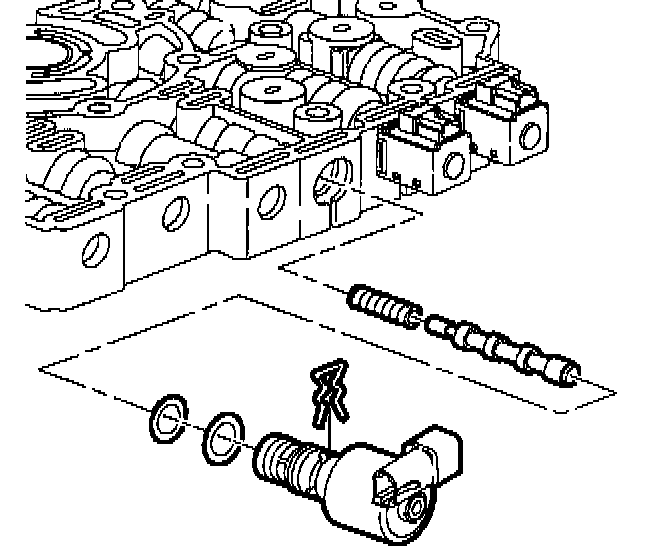

12. Install spring, TCC regulated apply valve, TCC solenoid with O-rings and screen, and TCC solenoid retainer clip.
