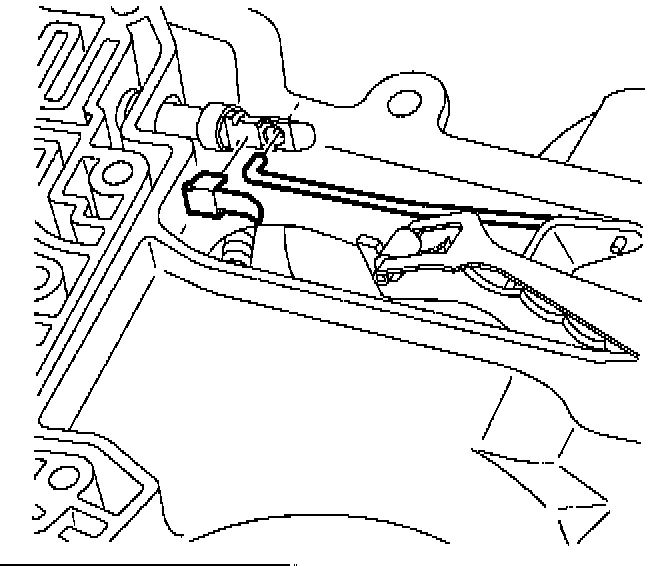

55. Manual Valve Clip Installation





1. Connect manual valve link to both manual valve and detent lever.
2. Install manual valve clip onto manual valve.
