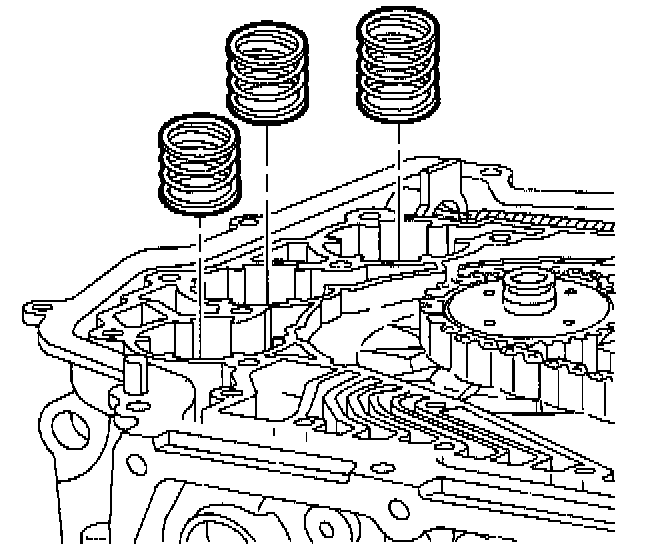

53. Accumulator Spring Installation

IMPORTANT: The 1-2 accumulator spring is slightly taller than the other two springs. Install a 1-2 accumulator spring in bore closest to electrical pass-through connector.

Install two remaining accumulator springs into transaxle case accumulator bores.
