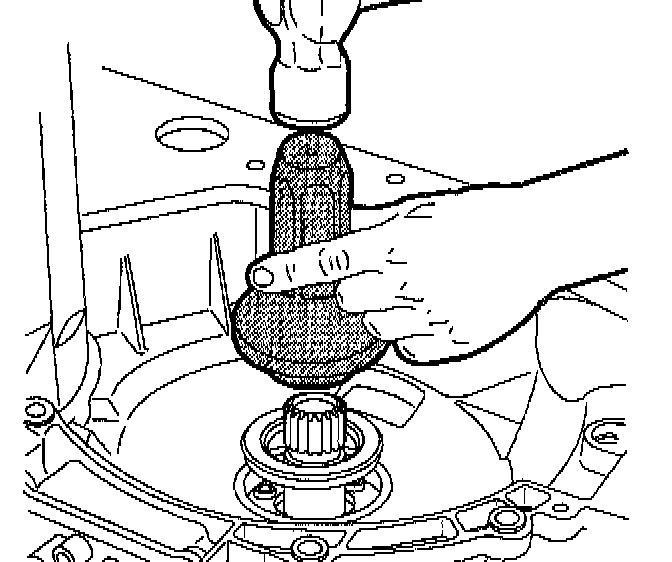

5. Torque Converter Seal Installation
5. Torque Converter Seal Installation
Tools Required
-
J28540-A Torque Converter Seal Installer
Install new torque converter seal. Use J28540-A.
