46. Wiring Harness Installation

1. Inspect wiring harness for damage.
2. Inspect pass through connector pins and O-ring seal for damage.

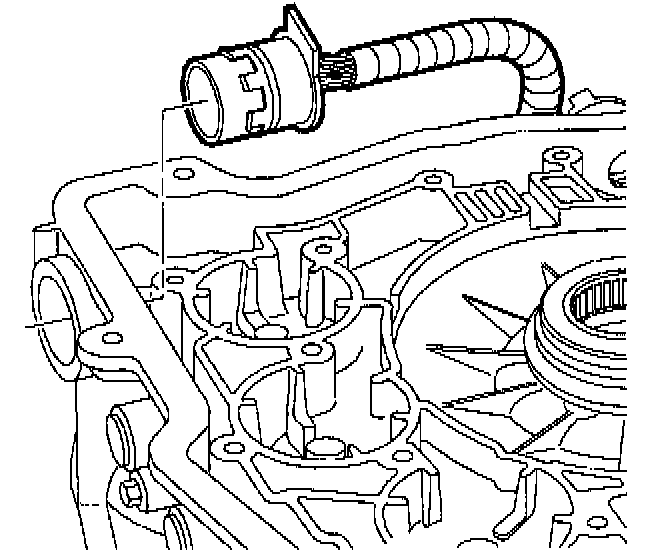

3. Assemble wiring harness pass through connector into transaxle case bore from inside of transaxle case.
