44. 2ND Clutch Functional Air Check
44. 2ND Clutch Functional Air Check

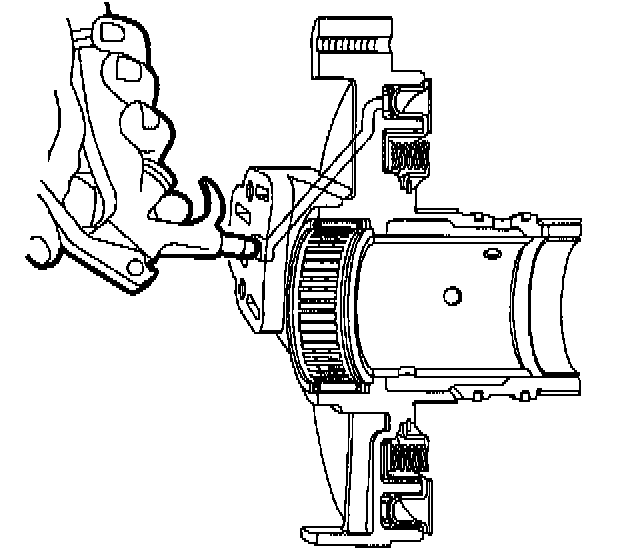

Air check 2nd clutch with 20 psi of air pressure in order to verify proper operation of seals and piston assembly.
