34. Direct/Coast Clutch, Reaction Carrier Installation

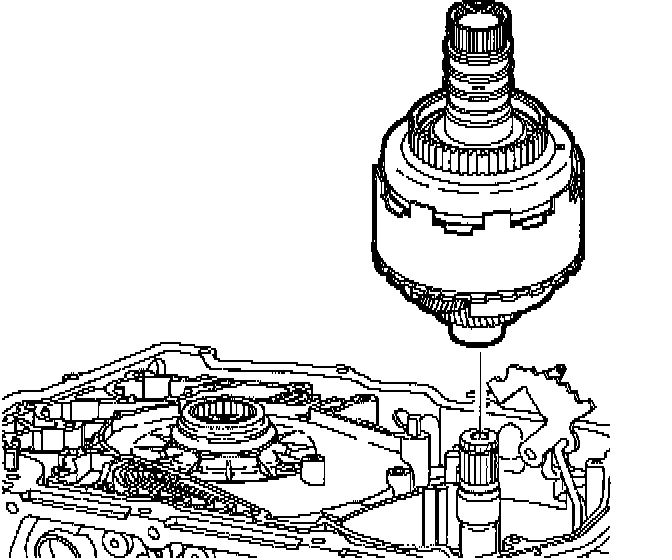

Install direct/coast clutch and reaction carrier assembly into transaxle case.
