21. Low/Reverse Band Installation

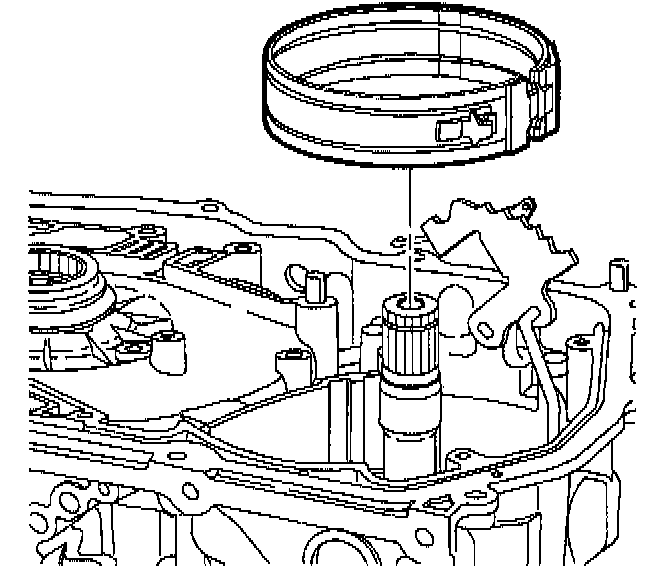

Install low/reverse band into transaxle ease. Align servo pin apply surface toward bottom pan and hook band into band anchor pin inside transaxle case.
