13. Output Shaft Inspect

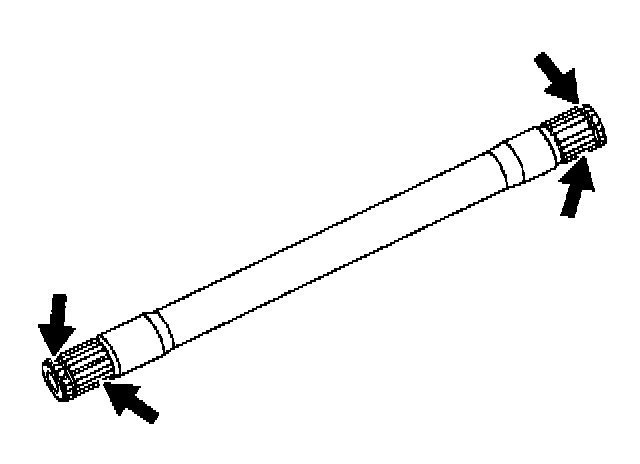

1. Inspect output shaft for damage to splines, snap ring grooves and journals.
2. Clean and dry output shaft.
