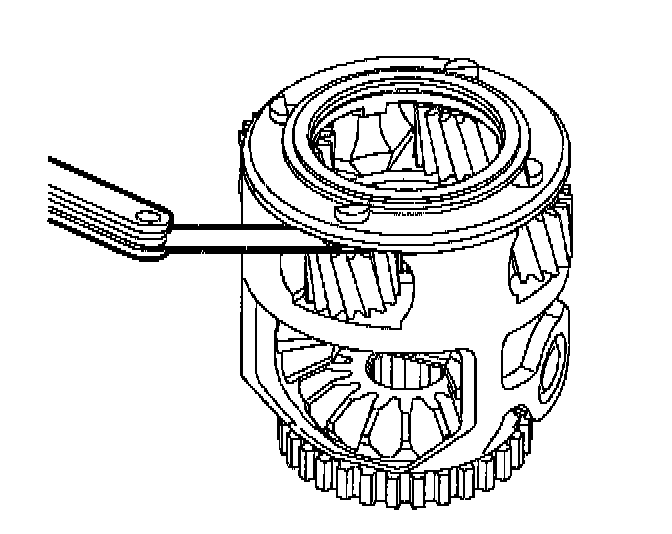

10. Final Drive Pinion End Play Check

Inspect end play with a feeler gauge for proper clearance. Proper clearance is 0.24 - 0.62 mm (0.009 - 0.024 inch).
- If clearance is out of specification on low side, repair differential assembly as necessary.
- If clearance is out of specification on high side, replace differential assembly.
