Right Side Axle Seal

Tools Required
- SA99133T Axle Seal Puller
- J41102 Axle Seal Installer

REMOVAL





1. Remove stub axle shaft from transaxle.

NOTICE: Be careful not to damage case bore with screwdriver.

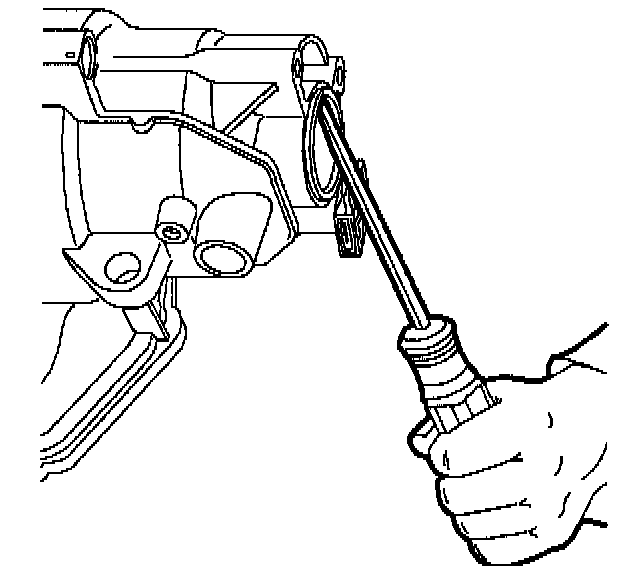

2. Use a screwdriver to remove axle seal from case. If necessary, crush seal first in order to loosen seal from case.

INSTALLATION





IMPORTANT: J41102 must be used in order to install seal correctly. The J41102 installs axle seal to a given depth.

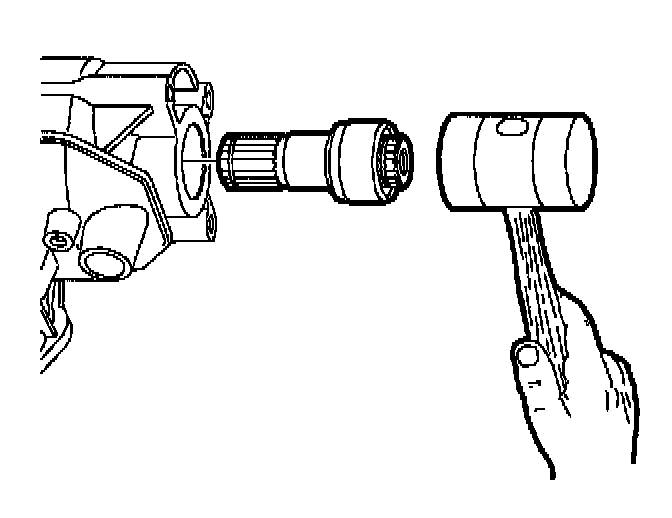

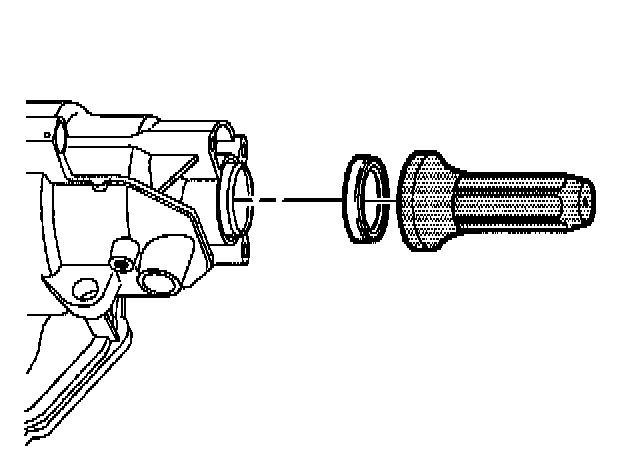

1. Using J41102, install a new right side axle seal into the transaxle case.





NOTICE: In order to prevent damage to shaft splices during vehicle operation, add grease (P/N 7843867) to splines on stub shaft.

2. Install stub axle shaft and RH axle in transaxle.
3. Check fluid level.
4. Inspect shaft and seal for fluid leaks.
