Left Side Axle Seal

Tools Required
- J41102 Axle Seal Installer

REMOVAL





1. Remove transaxle case side cover.

NOTICE: Do not score or damage side cover bore when removing axle seal.

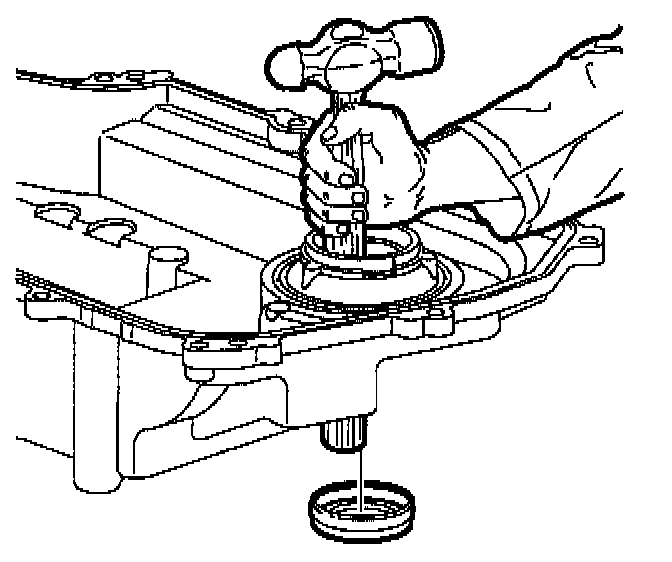

2. Remove left axle seal from side cover. Use handle end of hammer.

INSTALLATION





IMPORTANT: You must use axle seal installer J41102 in order to install seal correctly. J41102 installs the axle seal to a given depth.

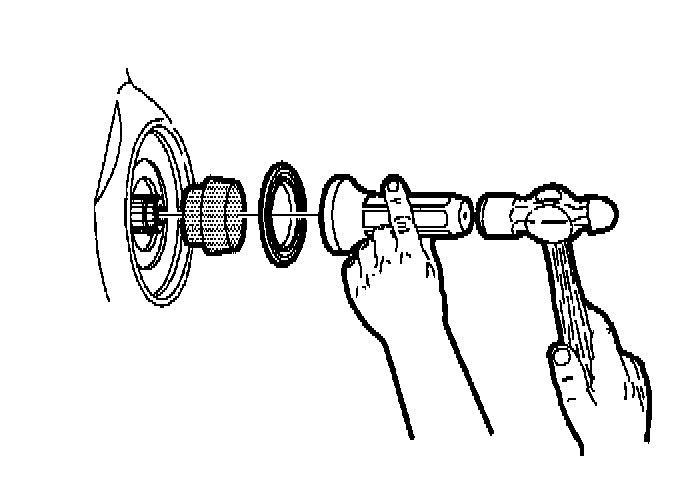

Install transaxle case side cover. Before axle shaft is reinstalled into the transaxle, install left axle seal into side cover using axle seal installer J41102 as shown. Complete installation of case side cover.
