Output Shaft: Service and Repair

Tools Required
- SA9211T2 5th Gear Remover
- J41228 Stub Shaft Sleeve Installer

REMOVAL





1. Remove transaxle case side cover.

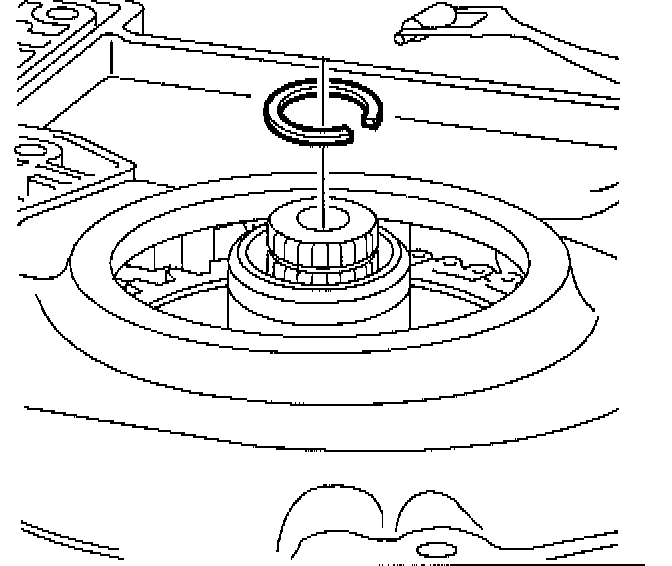

2. Remove snap ring from output axle shaft and discard.

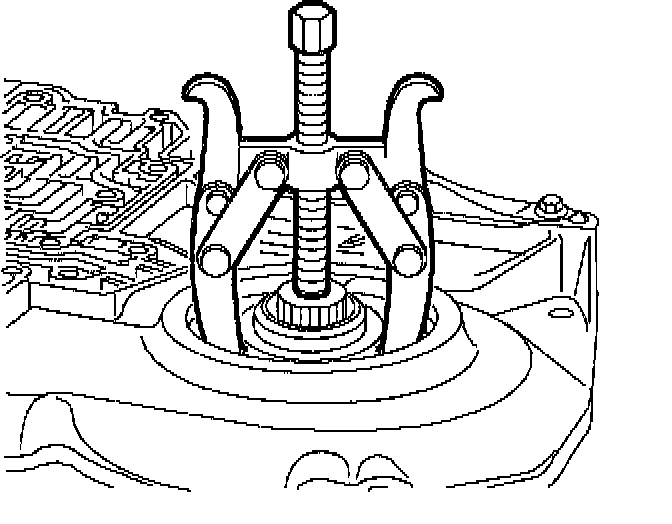

3. Remove output axle shaft sleeve from output shaft using SA9211T2.

INSTALLATION

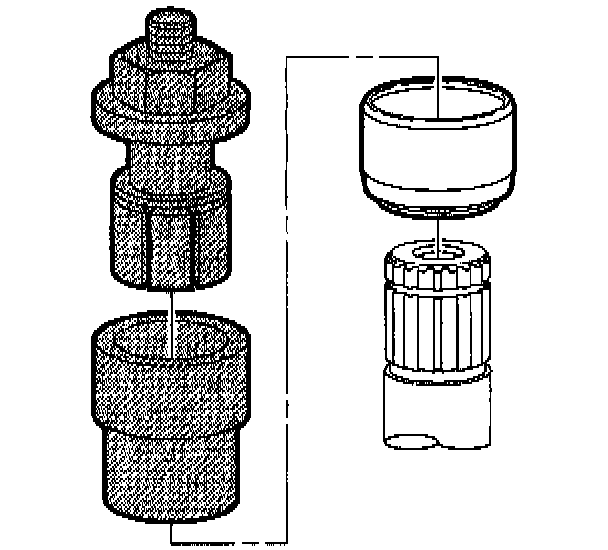

1. Use J41228 to install new sleeve on output axle shaft. Ensure that collet is located in snap ring groove when installing.

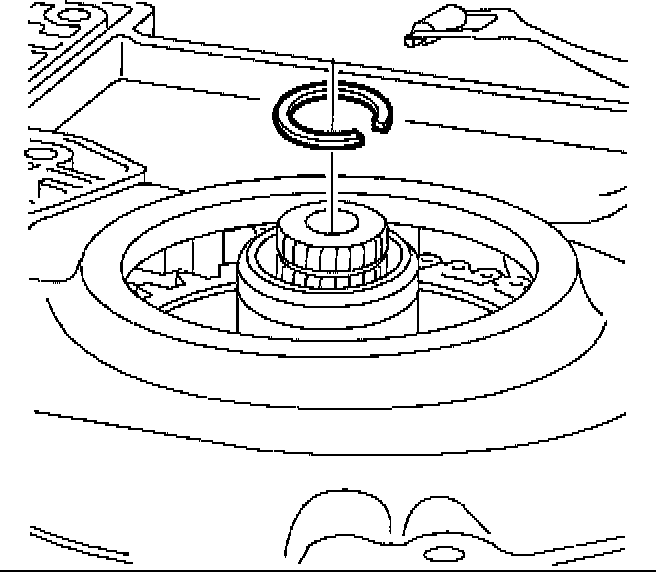

2. Install a new snap ring on output axle shaft.
3. Install transaxle case side cover.
4. Start engine, warm up transaxle, and check for leaks.
5. Check fluid level.
