Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Exploded Views >> Case and Associated Parts (1 of 3)

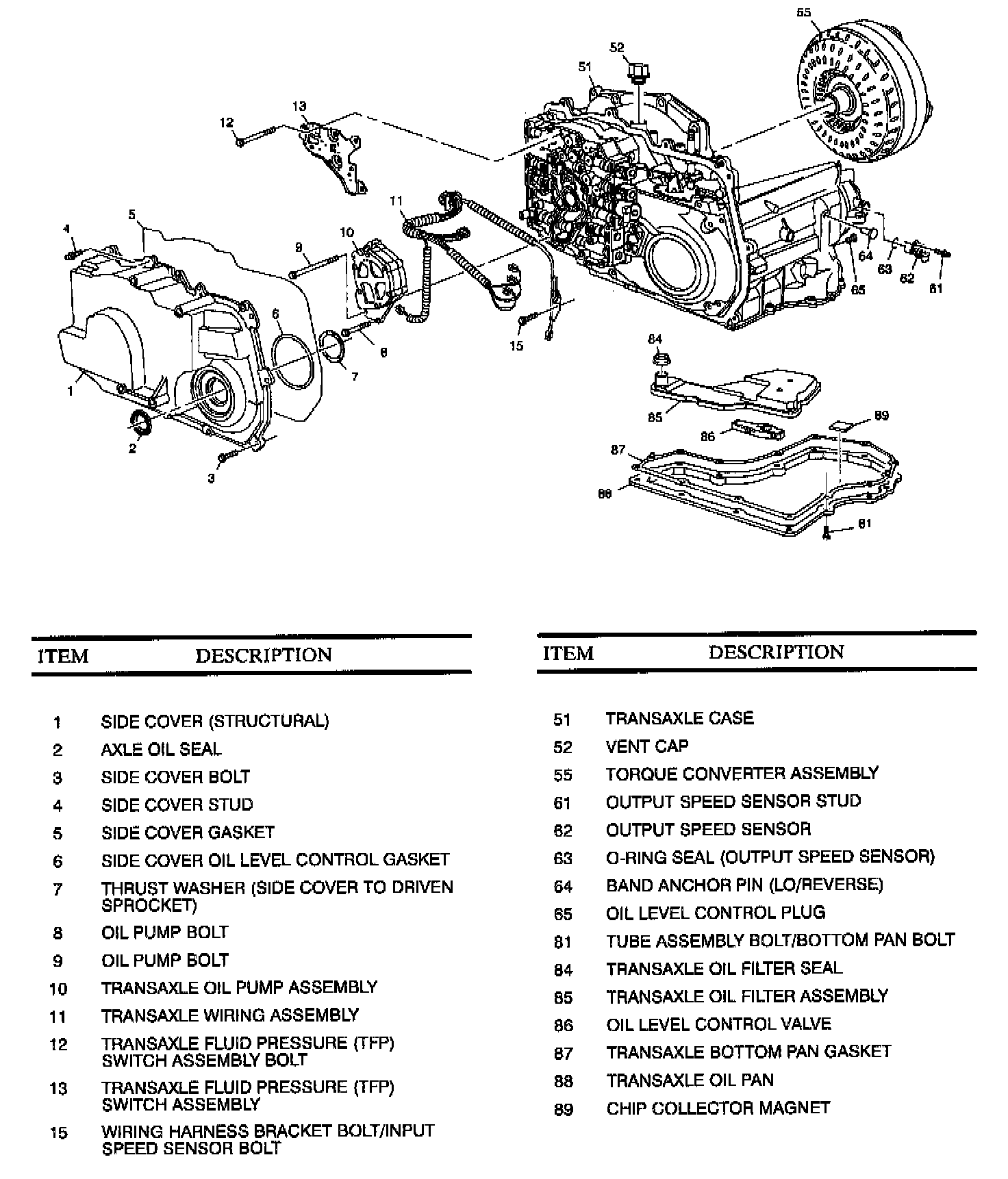

Case and Associated Parts (1 of 3)
