Ignition Switch

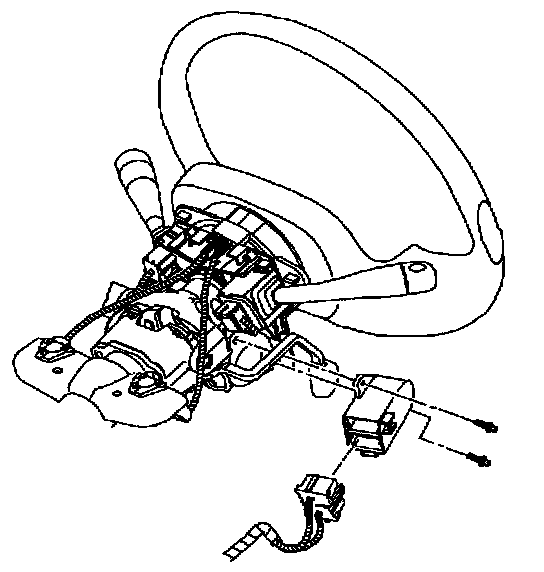

REMOVAL




1. Remove steering column upper shroud.
2. Remove ignition switch fasteners and switch.
3. Disconnect electrical connector.

INSTALLATION




1. Connect electrical harness.
2. Position ignition switch and install fasteners.

Torque: 1.5 Nm (13.3 in-lbs)

3. Install steering column upper shroud.
