Starter Solenoid Does Not Click/No Crank
Starter Solenoid Does Not Click/No Crank

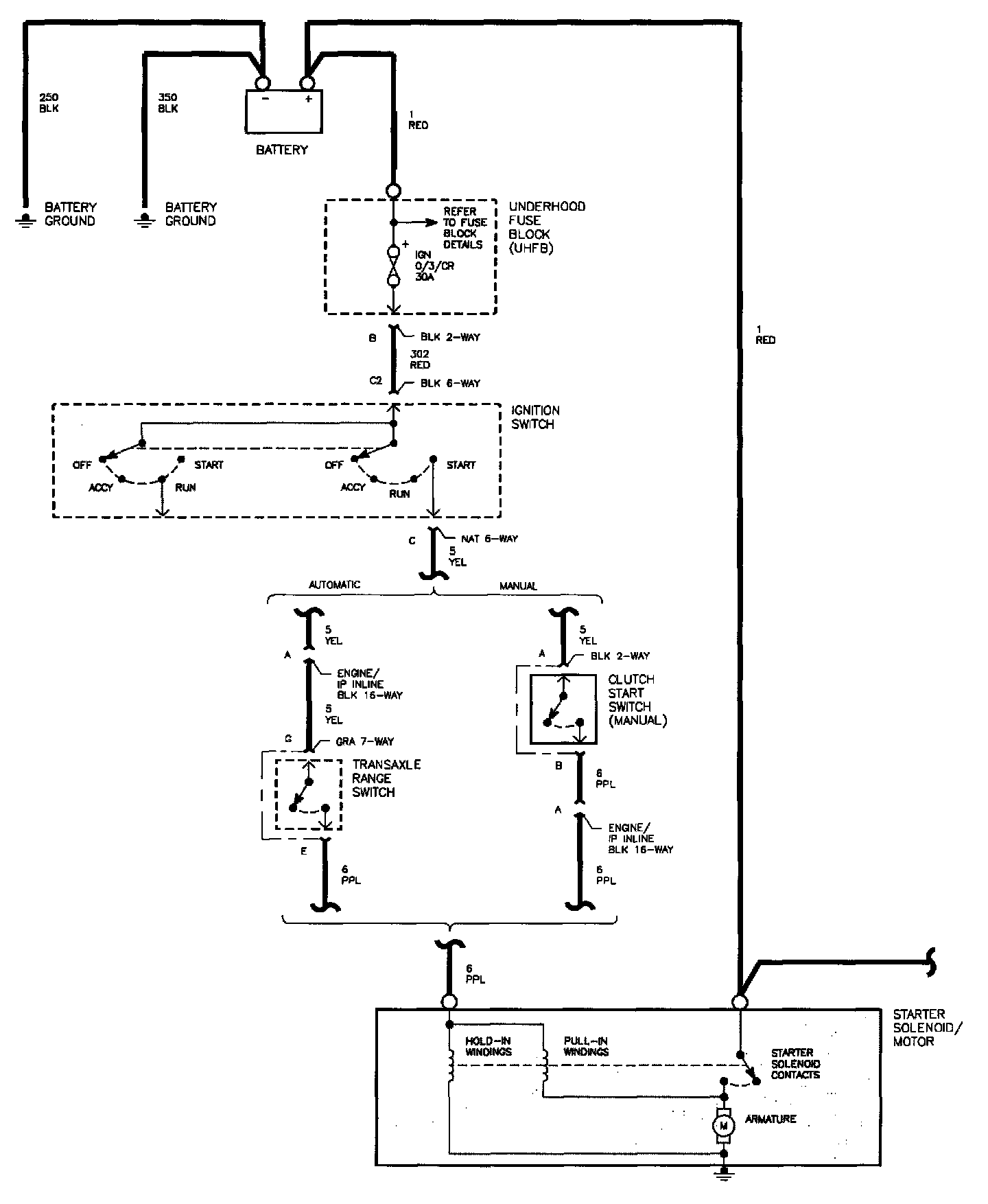

Schematic:
IMPORTANT:
Crank normal/No start. Refer to Engine/Emission Controls (L61)/(L81).

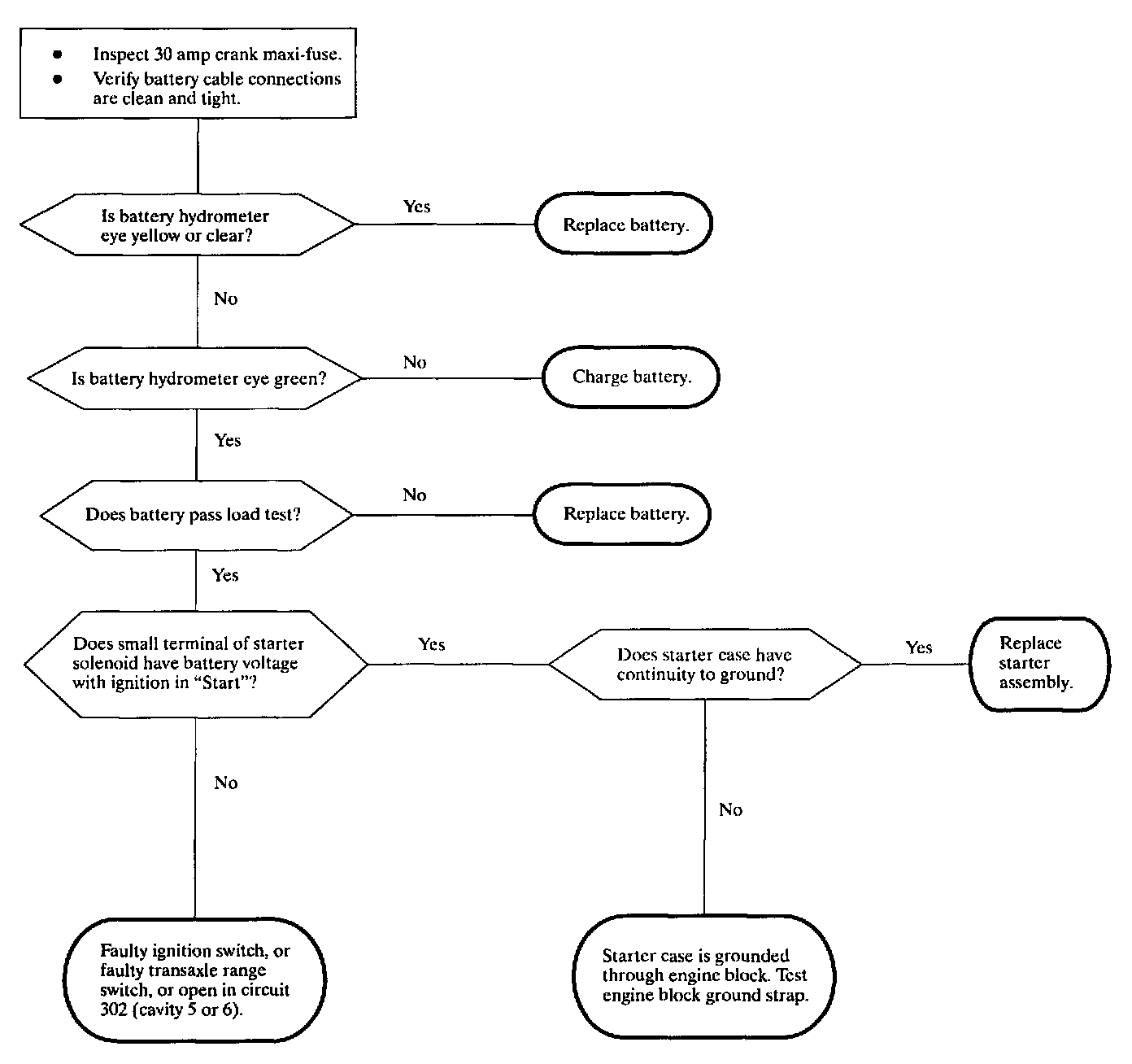

Diagnostic Chart:
