Starter Solenoid Clicks, Engine Does Not Crank
Starter Solenoid Clicks, Engine Does Not Crank

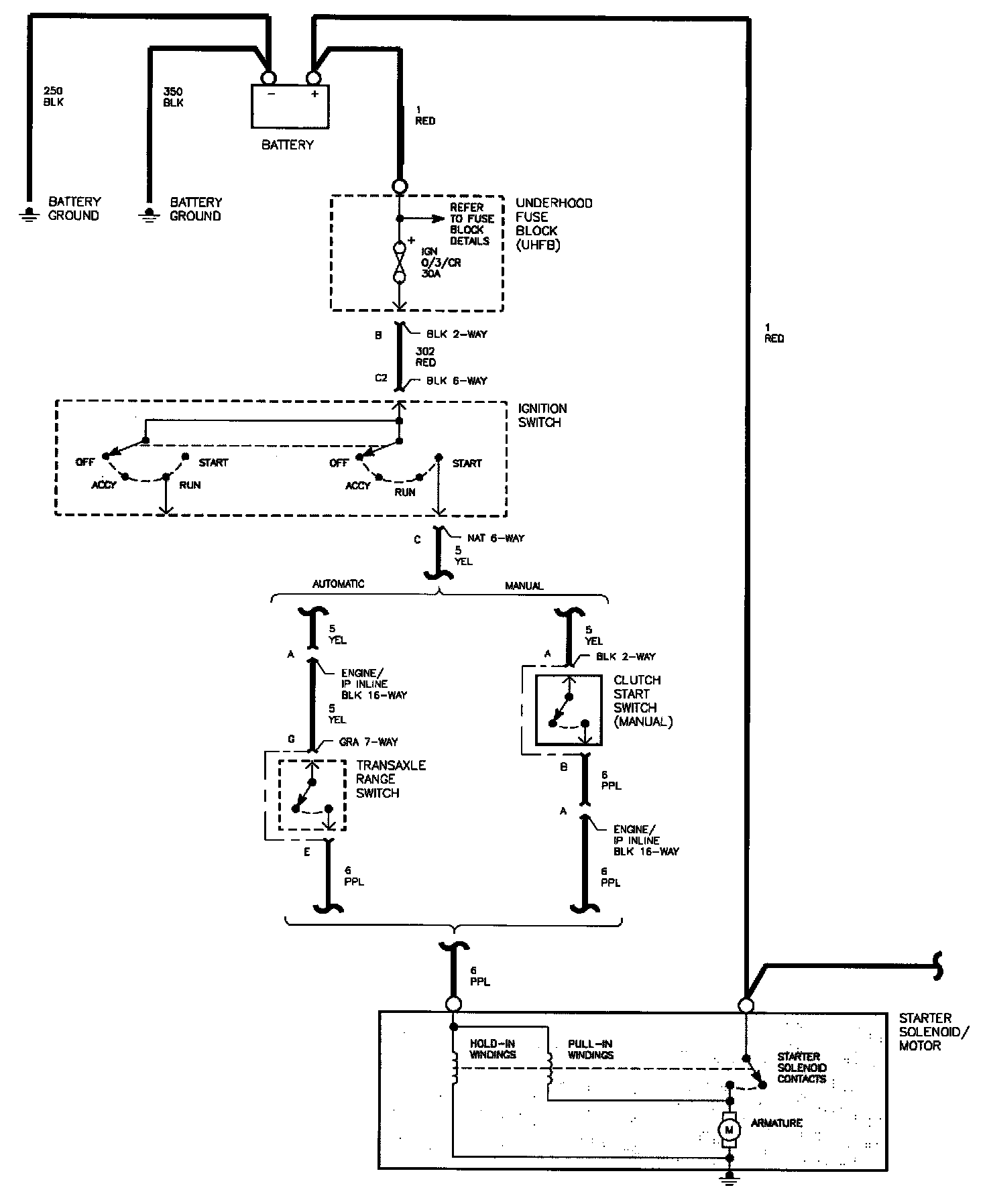

Schematic:
IMPORTANT:
Crank normal/No start. Refer to Engine/Emission Controls (L61).

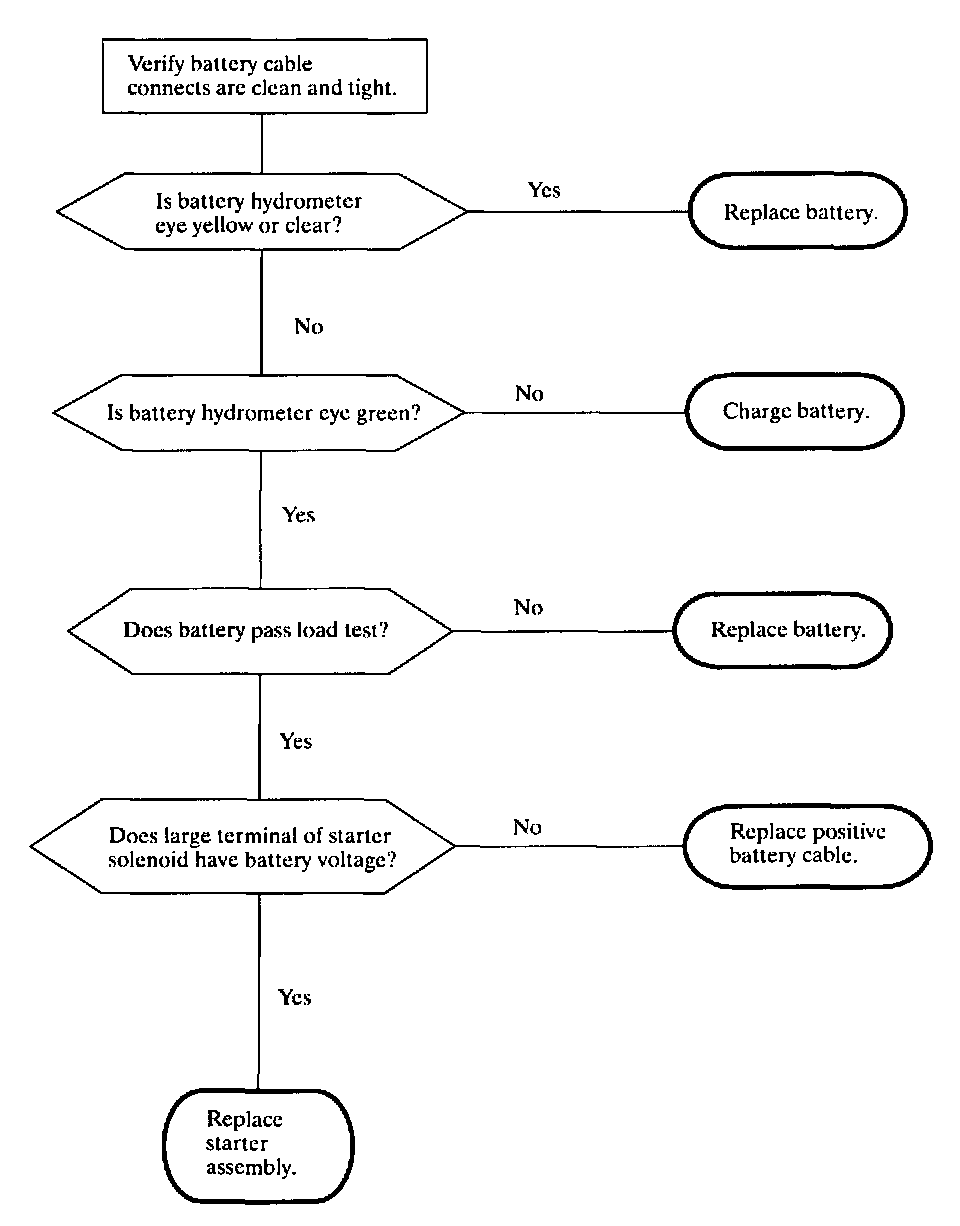

Diagnostic Chart:
