Scan Tool Testing and Procedures

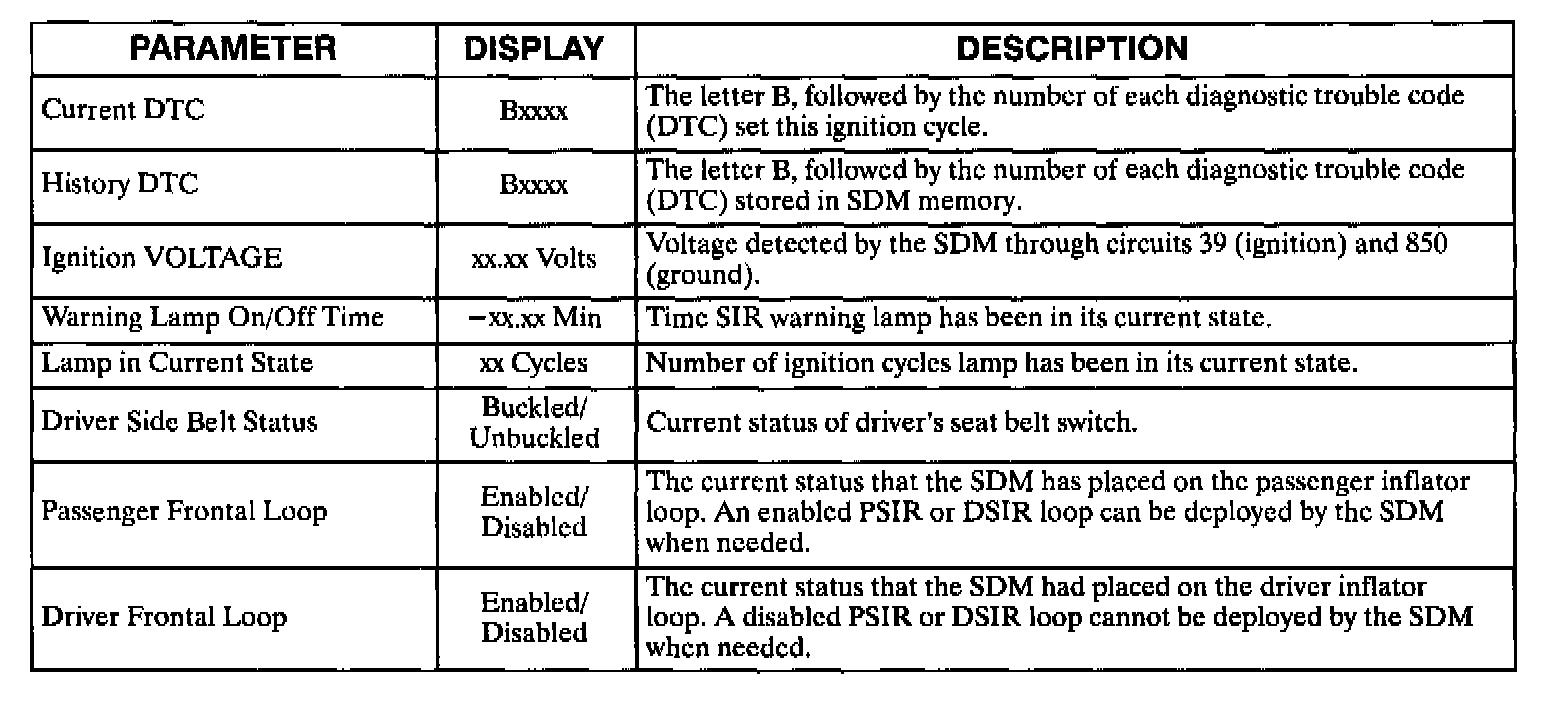

SCAN TOOL DATA PARAMETER DEFINITION:

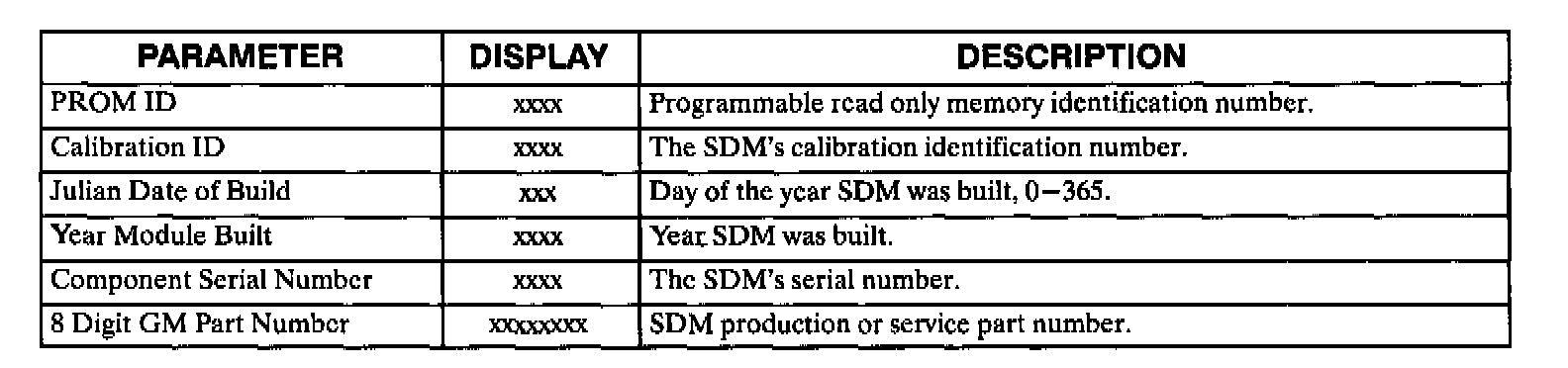

SCAN TOOL CONTROLLER INFORMATION DEFINITION:
