Instrument Panel Gauges

The instrument panel gauges are controlled by the Body Control Module (BCM) via the serial data link to the Instrument Panel Cluster (IPC).

Instrument Panel Gauges:

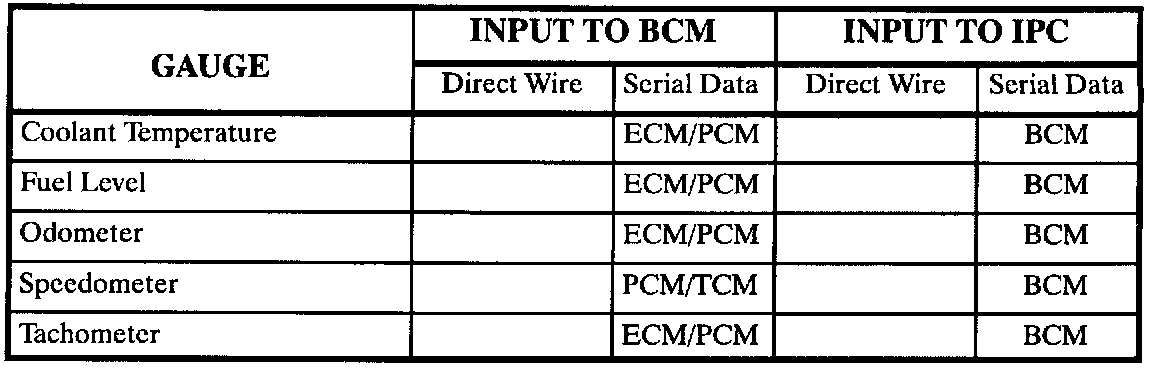

The table gives the information source for each gauge:
