Weather Pack Connectors




TERMINAL REMOVAL
1. Remove any terminal position assurance (TPA) devices.

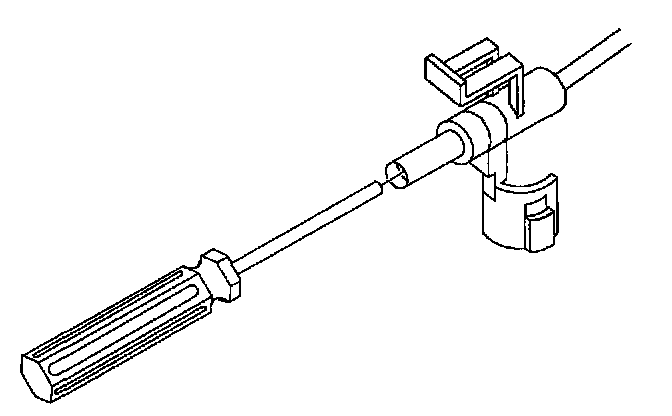

2. Insert the weather pack removal tool into the front of the terminal cavity.
