Shift Solenoid: Service and Repair
REMOVAL1. Remove transaxle case side cover.
IMPORTANT: Retainer clips hold in each of the valve line-ups. Use a small screwdriver in order to remove retainer clips. Be careful not to score valve body when removing retainer clips and valves. Before removing valve line-ups, inspect each valve line-up for free travel.

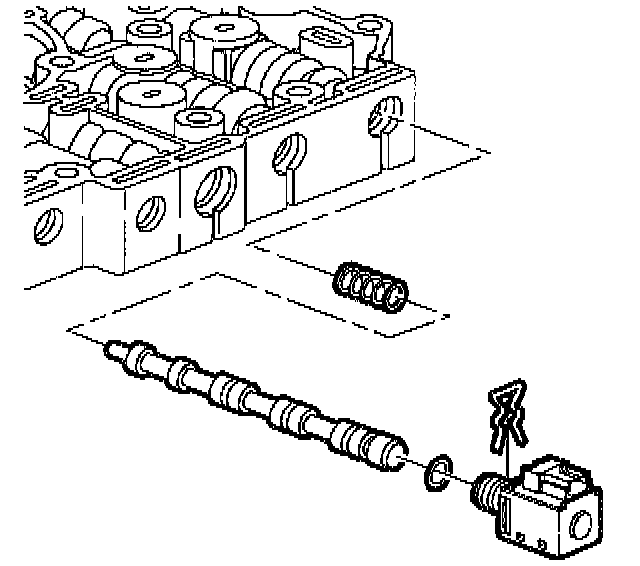

1-2 Shift Solenoid
2. Remove 1-2 shift solenoid retainer clip and 1-2 shift solenoid with O-ring.

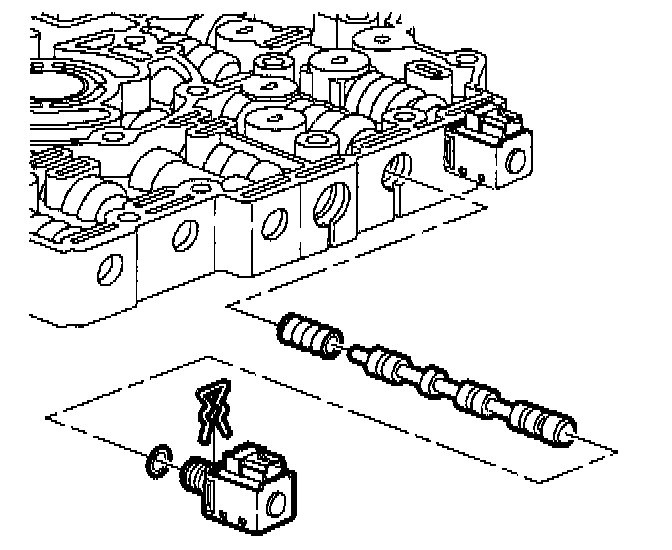

2-3 Shift Solenoid
3. Remove 2-3 shift solenoid retainer clip and 2-3 shift solenoid with O-ring.

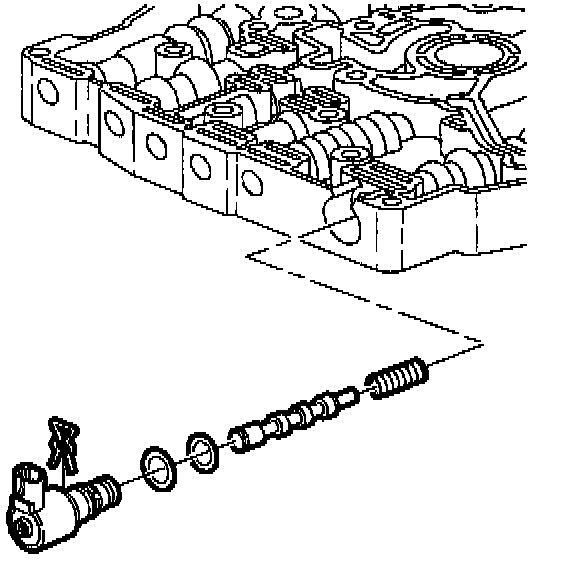

Pressure Control Solenoid
4. Remove Pressure Control Solenoid (PCS) retainer clip and pressure control solenoid with two O-rings and screen.

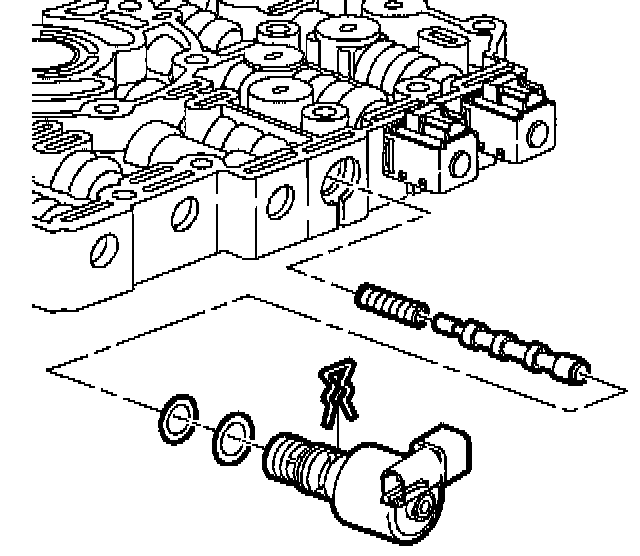

TCC Solenoid
5. Remove TCC solenoid retainer clip and TCC solenoid with two O-rings and screen.
INSTALLATION
IMPORTANT: Inspect all O-ring seals for damage prior to installation. Replace any damaged O-ring seals.

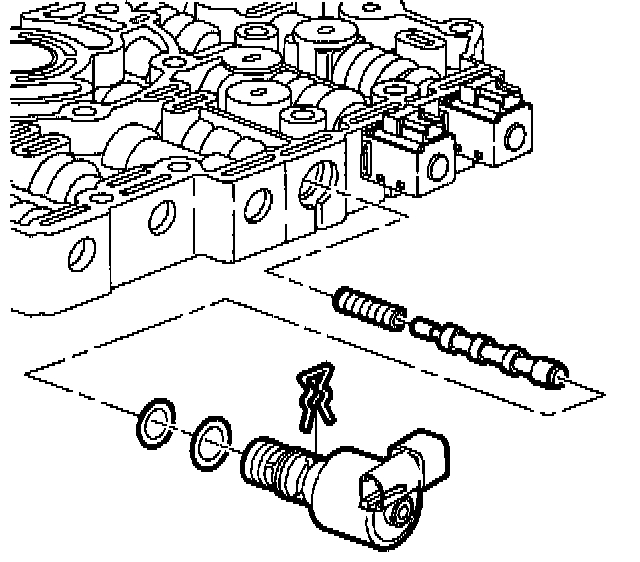

TCC Solenoid
1. Install TCC solenoid with O-ring and screen and install TCC solenoid retainer clip.
Pressure Control Solenoid
2. Install Pressure Control Solenoid (PCS) with two O-rings and screen and PCS retainer clip.

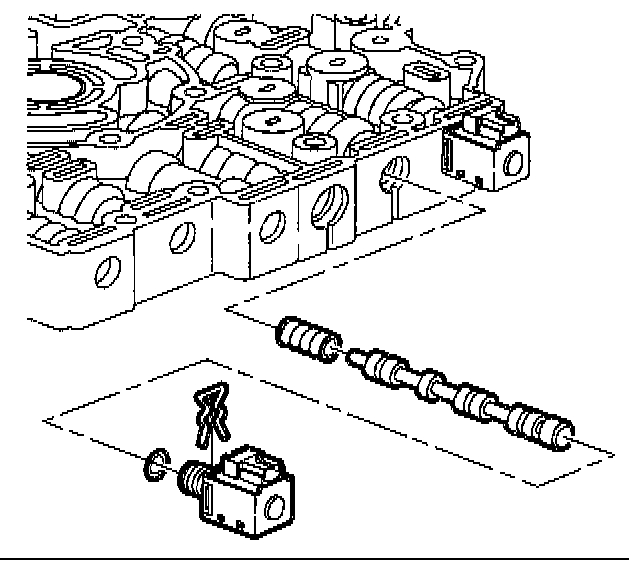

2-3 Shift Solenoid
3. Install 2-3 shift solenoid with O-ring and 2-3 shift solenoid retainer clip.

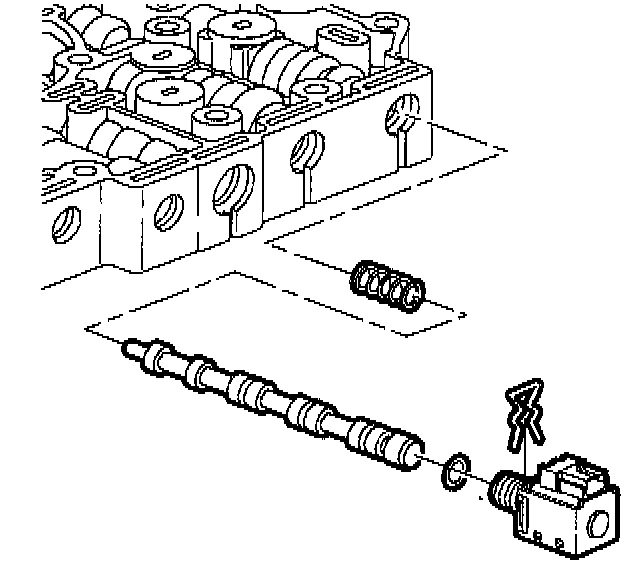

1-2 Shift Solenoid
4. Install 1-2 shift solenoid with O-ring and 1-2 shift solenoid retainer clip.
5. Install transaxle case side cover.
6. Start engine, warm up transaxle, and check for leaks.
7. Check for proper fluid level using "Transaxle Fluid Level Checking Procedure".
