Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Diagrams >> Ignition Coil Cylinders 2, 4, 6

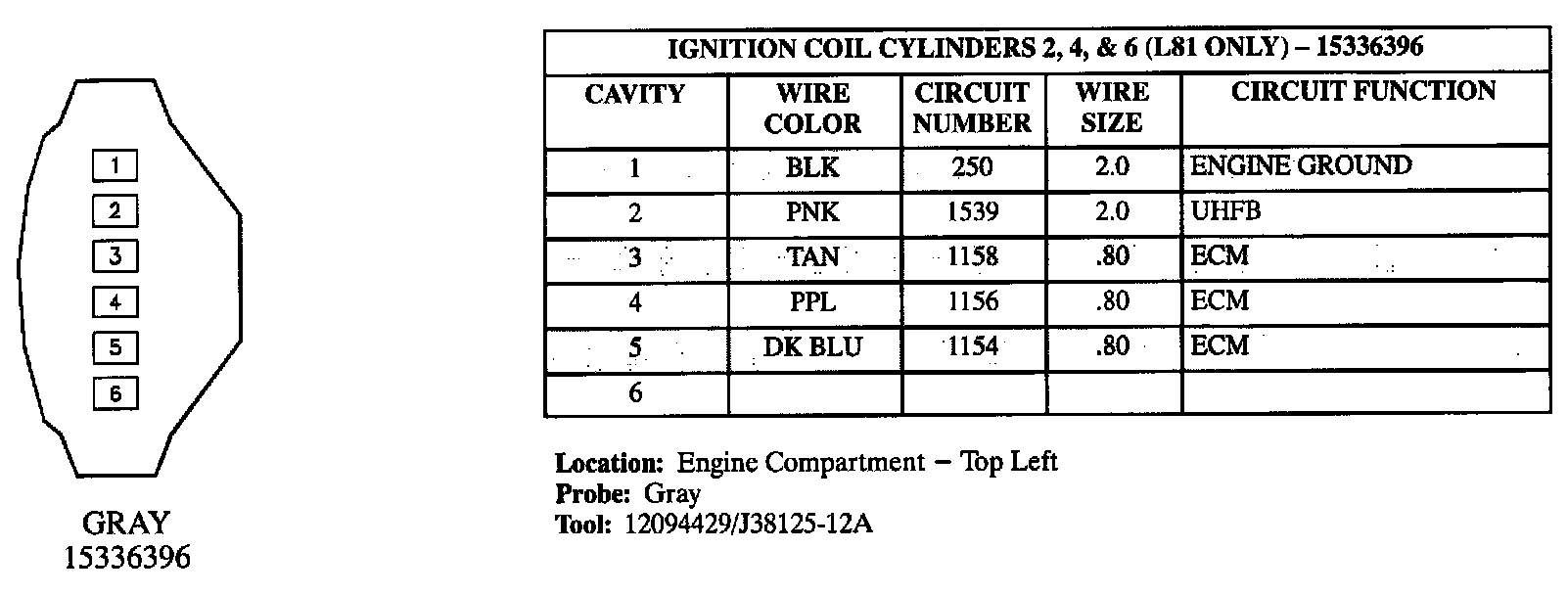

Ignition Coil Cylinders 2, 4, 6

Ignition Coil Cylinders 2, 4, 6:
