LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Description and Operation
>>
Fuel Supply System
>>
Fuel Pump Module
Fuel Pump Module

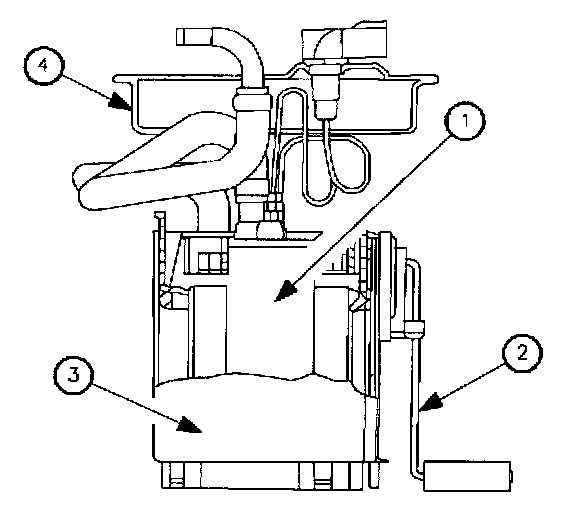

The fuel pump module is sealed to the
fuel tank
with a retaining ring and O-ring seal. The module consists of:
(1)
Fuel Pump
(2)
Fuel Level Sender
(3)
Fuel Pump
Housing
(4)
Fuel Pump Cover
