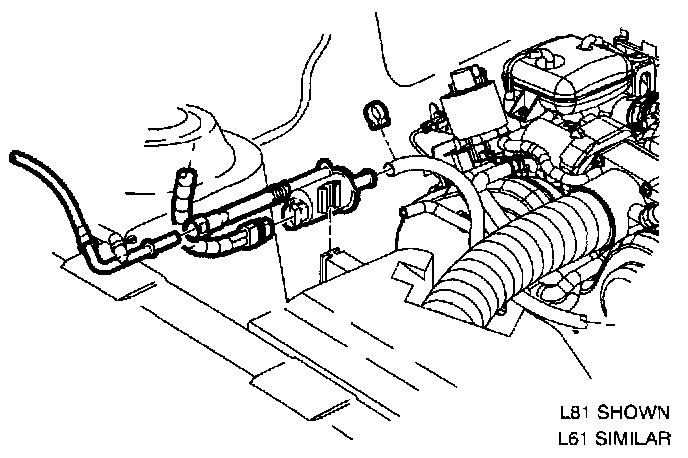

EVAP Canister Purge Solenoid

REMOVAL

CAUTION: Do not allow smoking or the use of open flame in the area where work on the fuel system is taking place.

1. Disconnect purge line at quick connect.
2. Disconnect electrical connector.
3. Lift solenoid valve from retaining bracket.
4. Remove rubber hose.

INSTALLATION
1. Install rubber hose.
2. Snap solenoid into retaining bracket.
3. Connect electrical connector.
4. Connect purge line at quick connect with new purge line retainer.
