Mode 6 Data

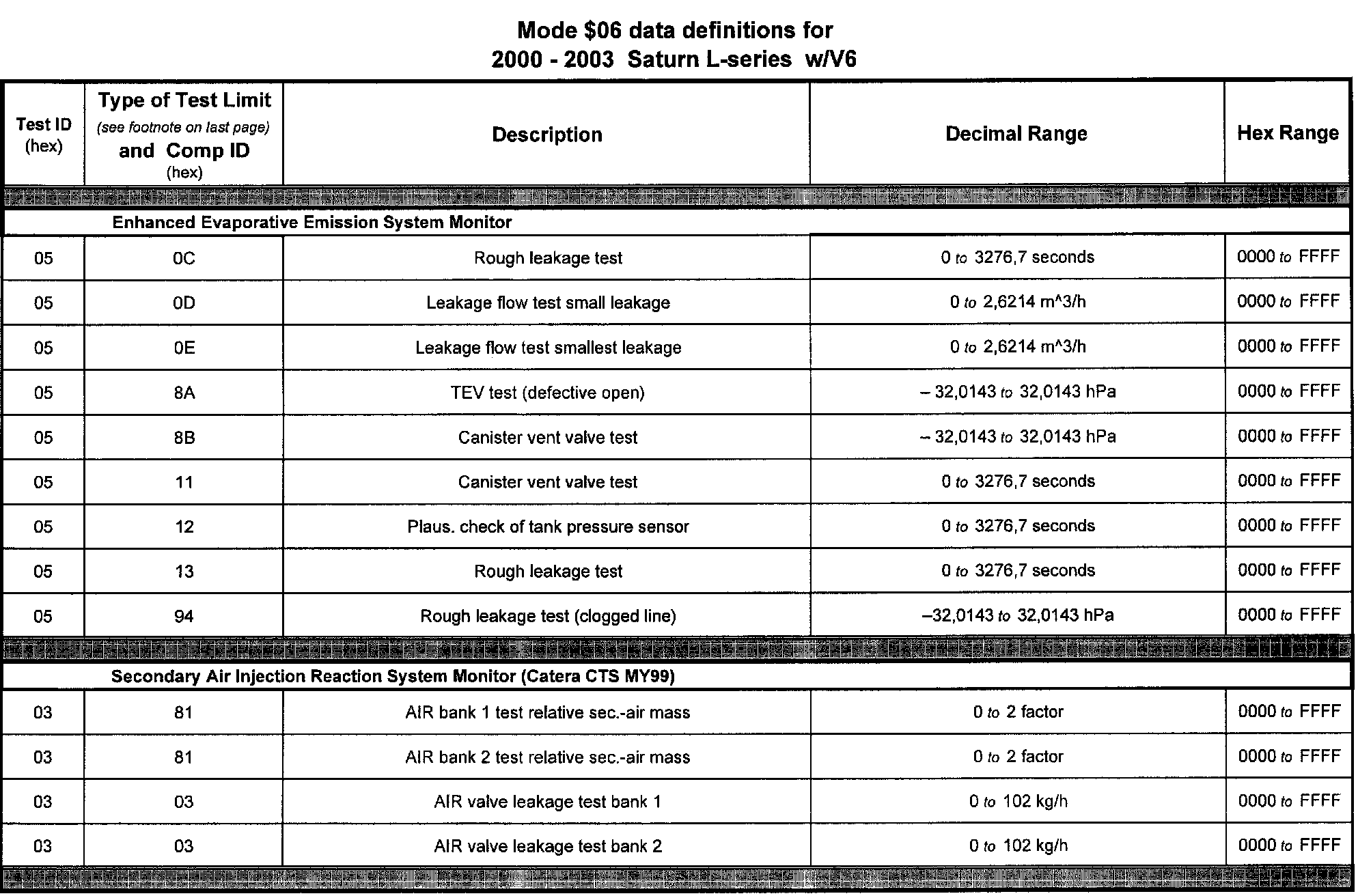

2000-2003 Saturn L Series With V6 Mode 6 Data Description Page 1:

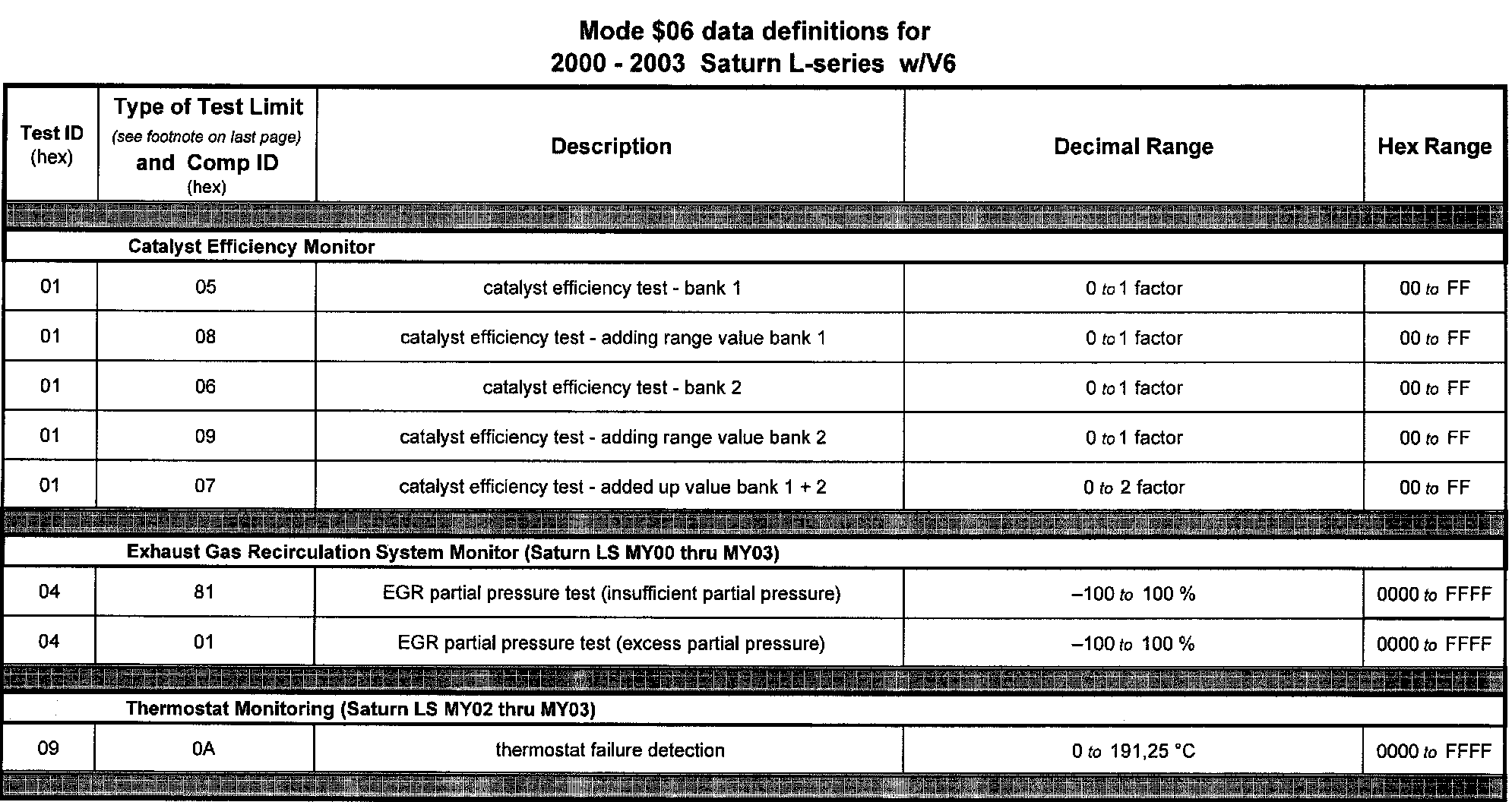

2000-2003 Saturn L Series With V6 Mode 6 Data Description Page 2:

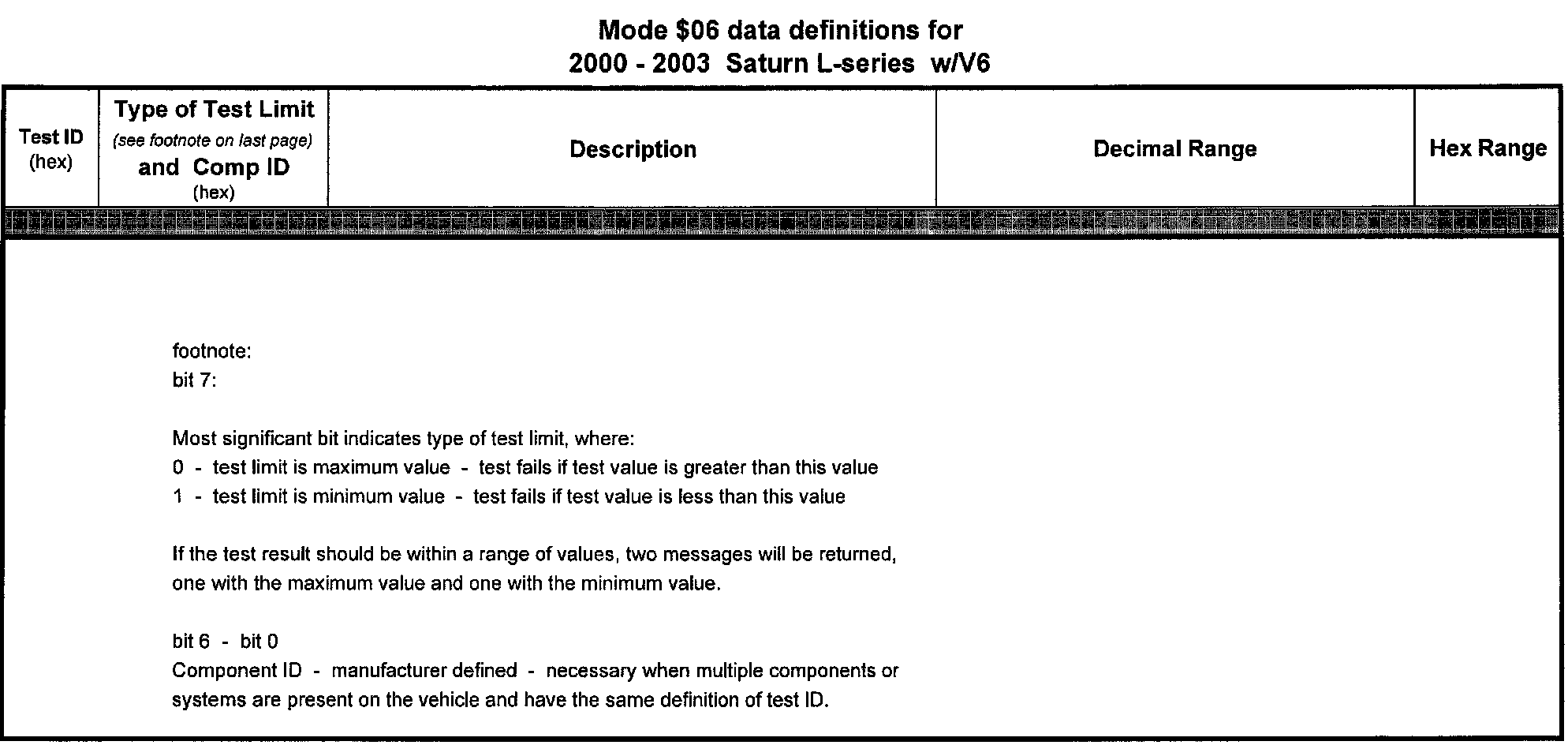

2000-2003 Saturn L Series With V6 Mode 6 Data Description Page 3:
