Scan Tool Does Not Power Up

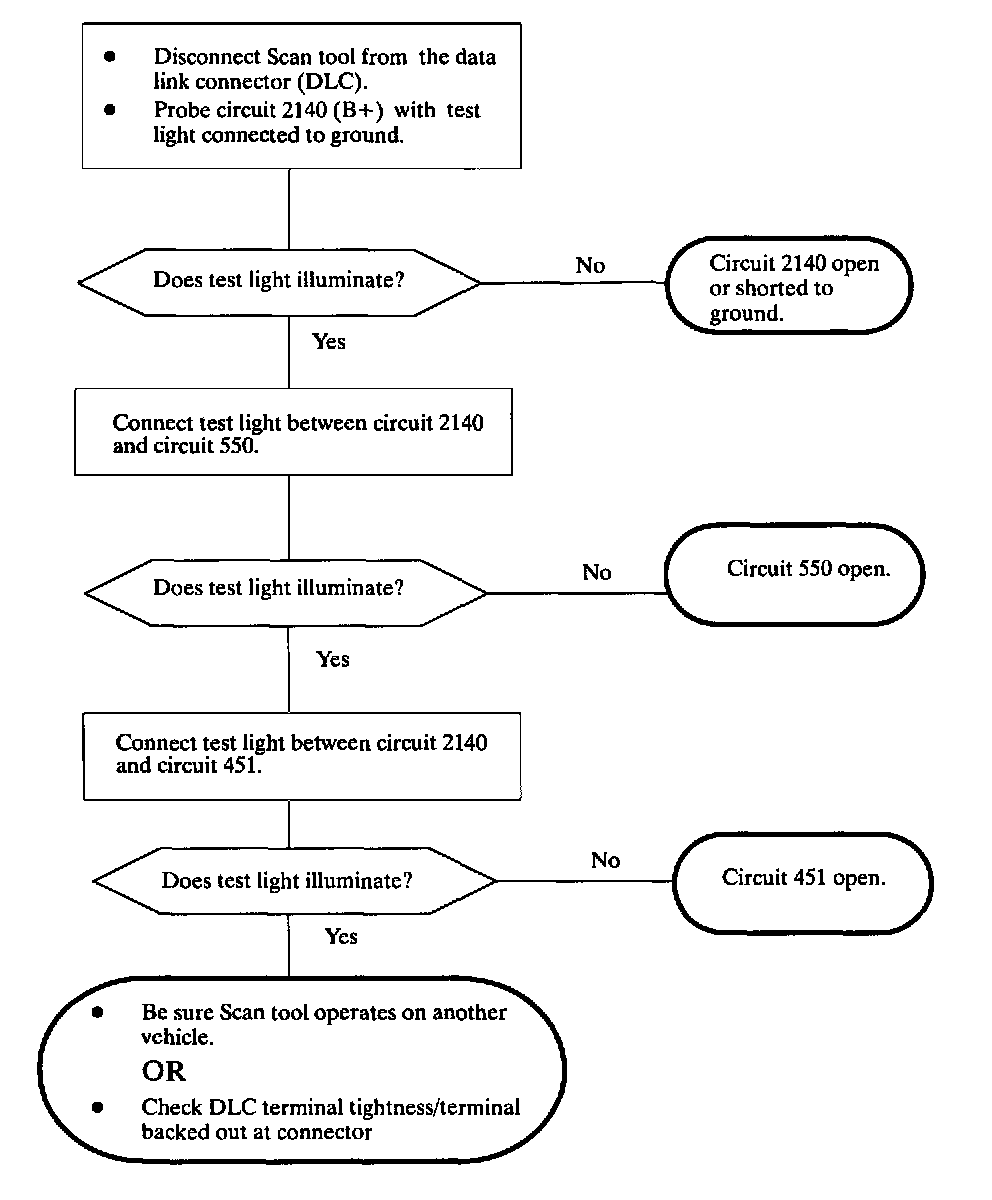

Diagnostic Chart:

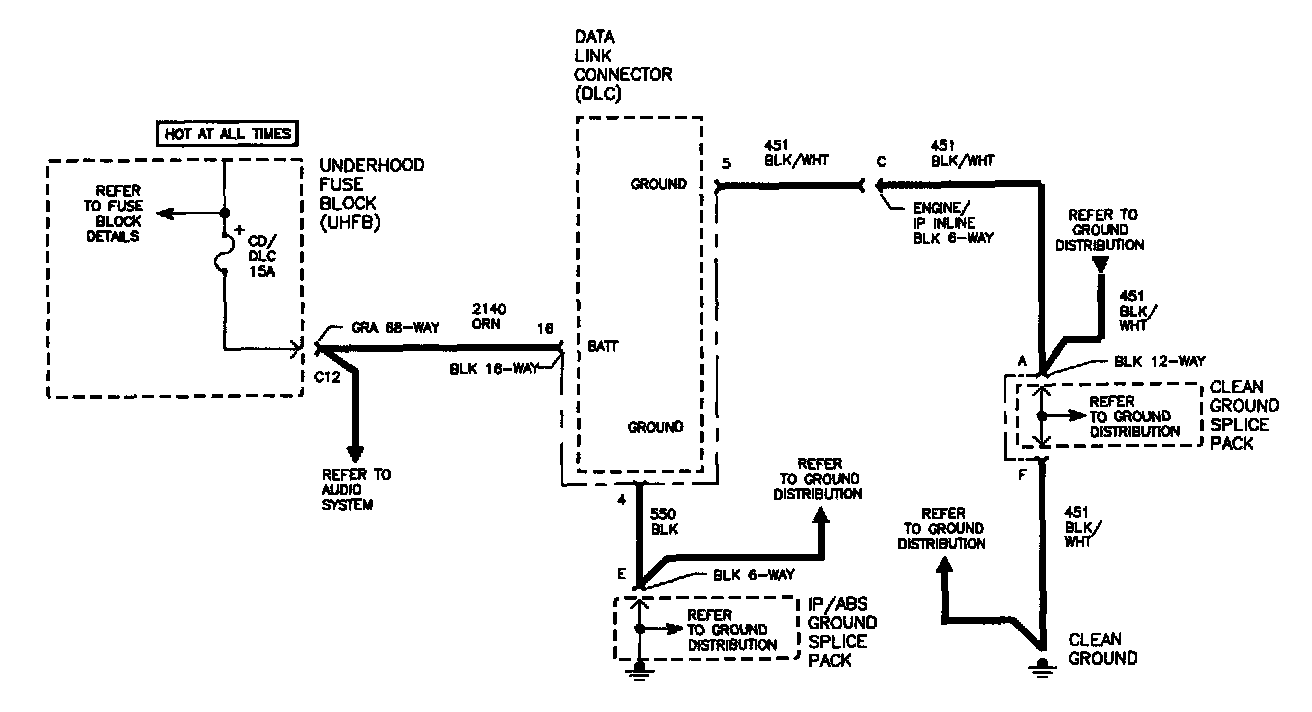

Schematic:

Most Scan tools use the power and ground circuits at the DLC. This chart does not diagnose the Scan tool, only the vehicle. Before using this chart be sure that the Scan tool operates properly on another vehicle.
