Underhood Fuse Block - Engine

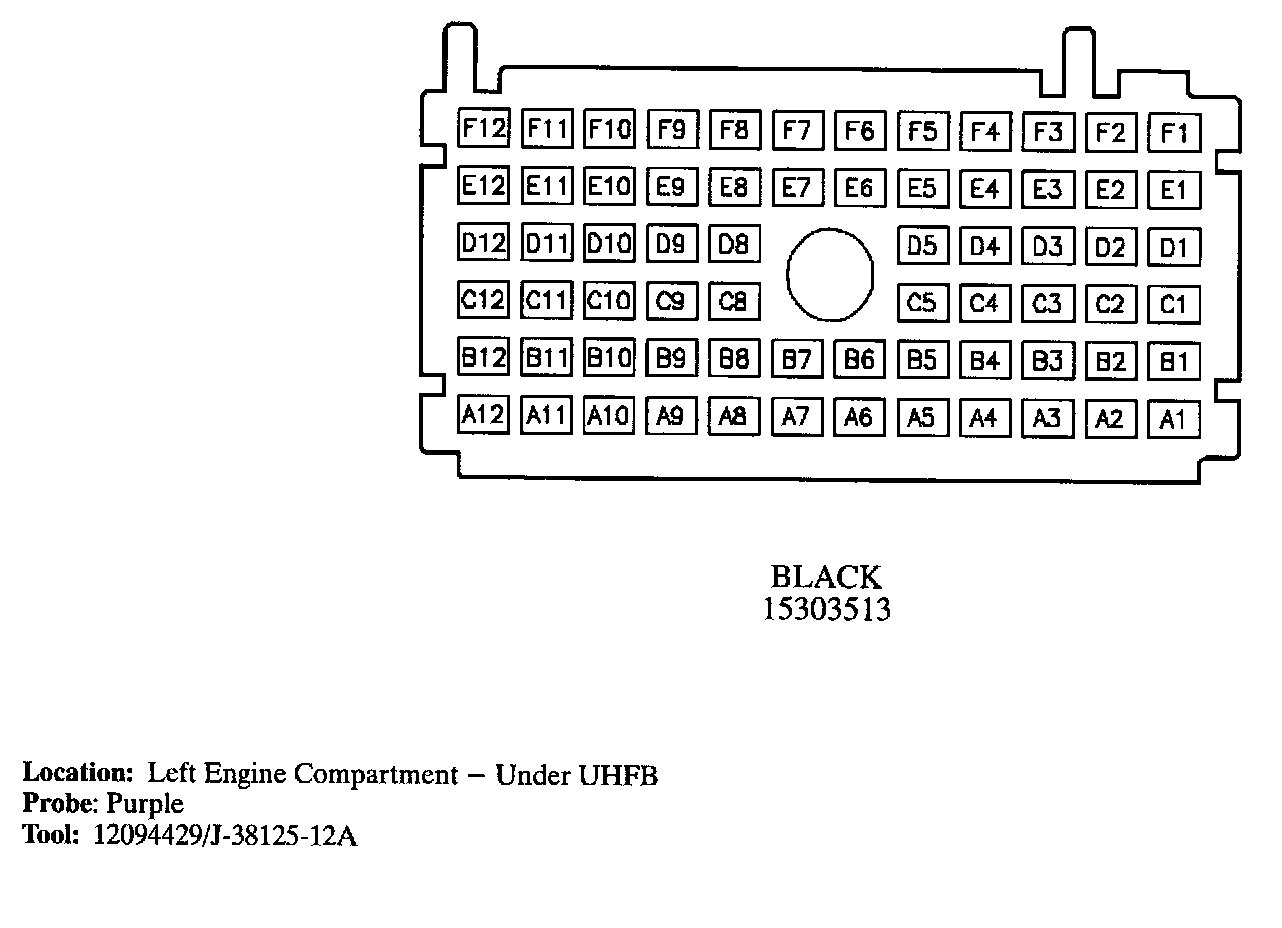

Underhood Fuse Block - Engine (Part 1 Of 4):

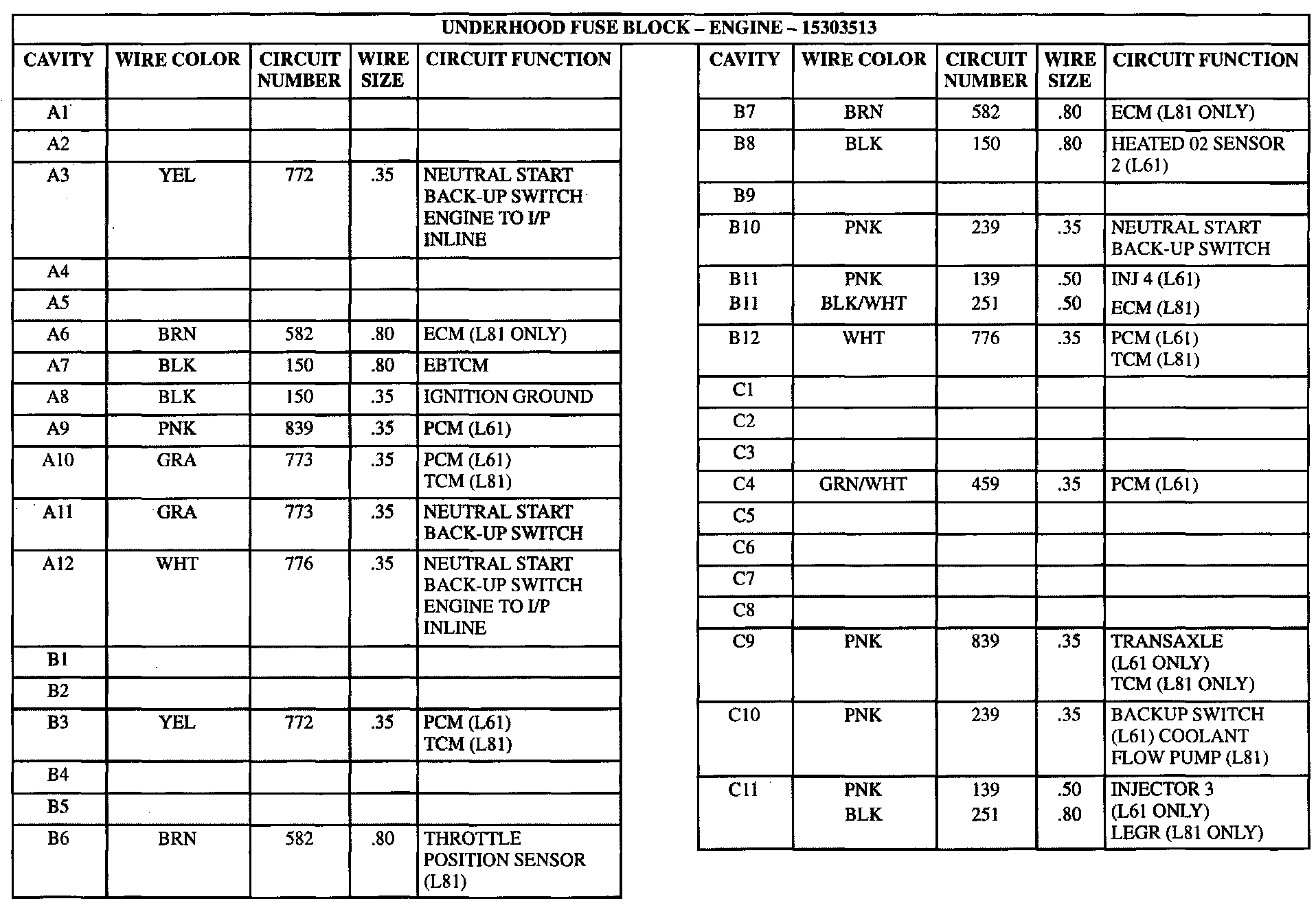

Underhood Fuse Block - Engine (Part 2 Of 4):

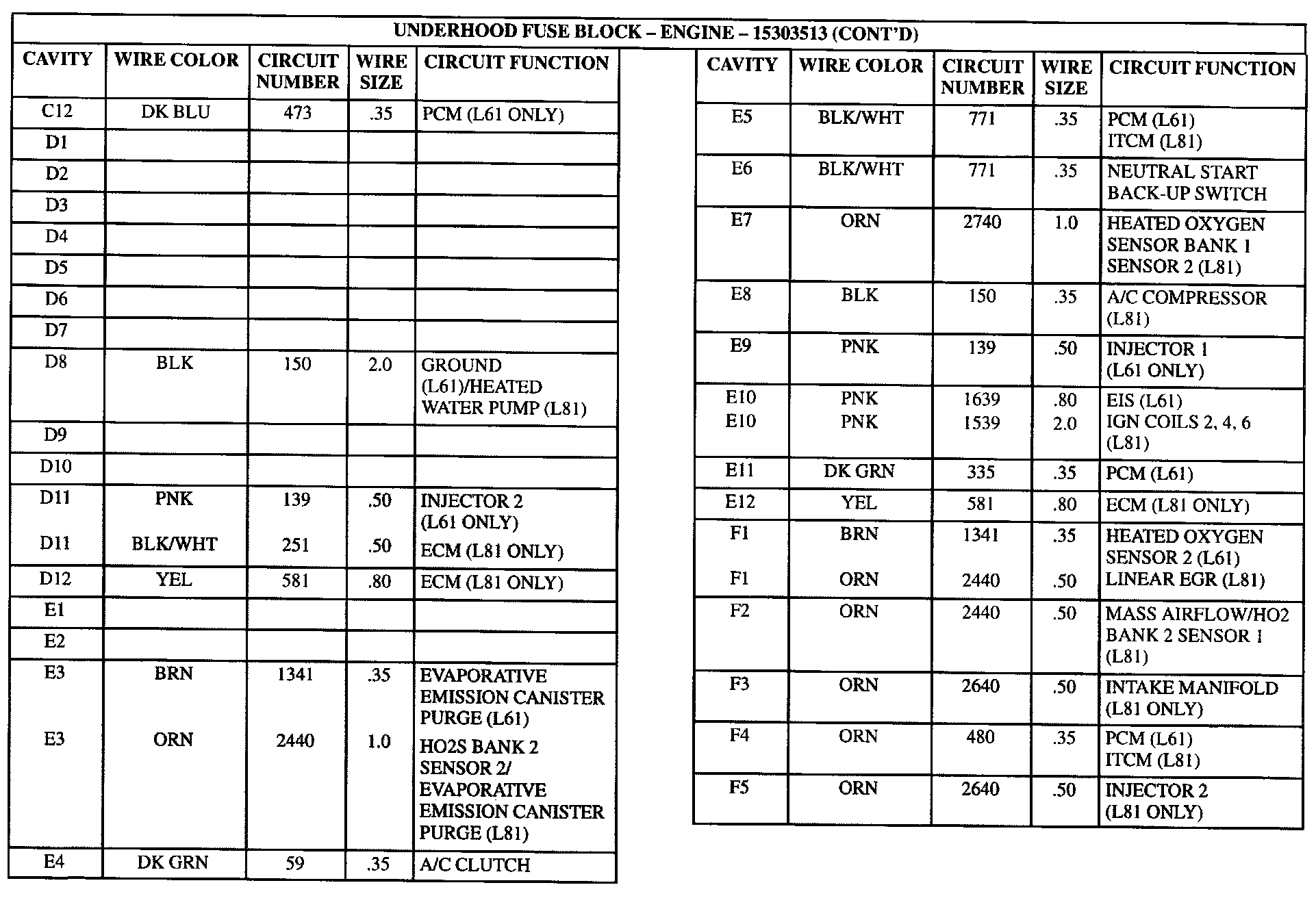

Underhood Fuse Block - Engine (Part 3 Of 4):

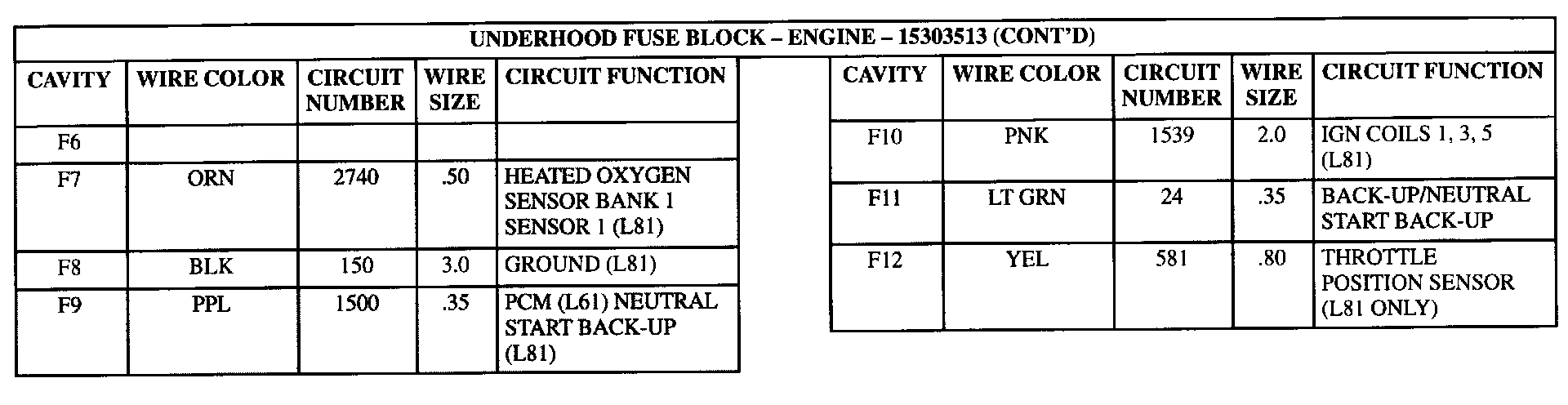

Underhood Fuse Block - Engine (Part 4 Of 4):
