HTD SEAT

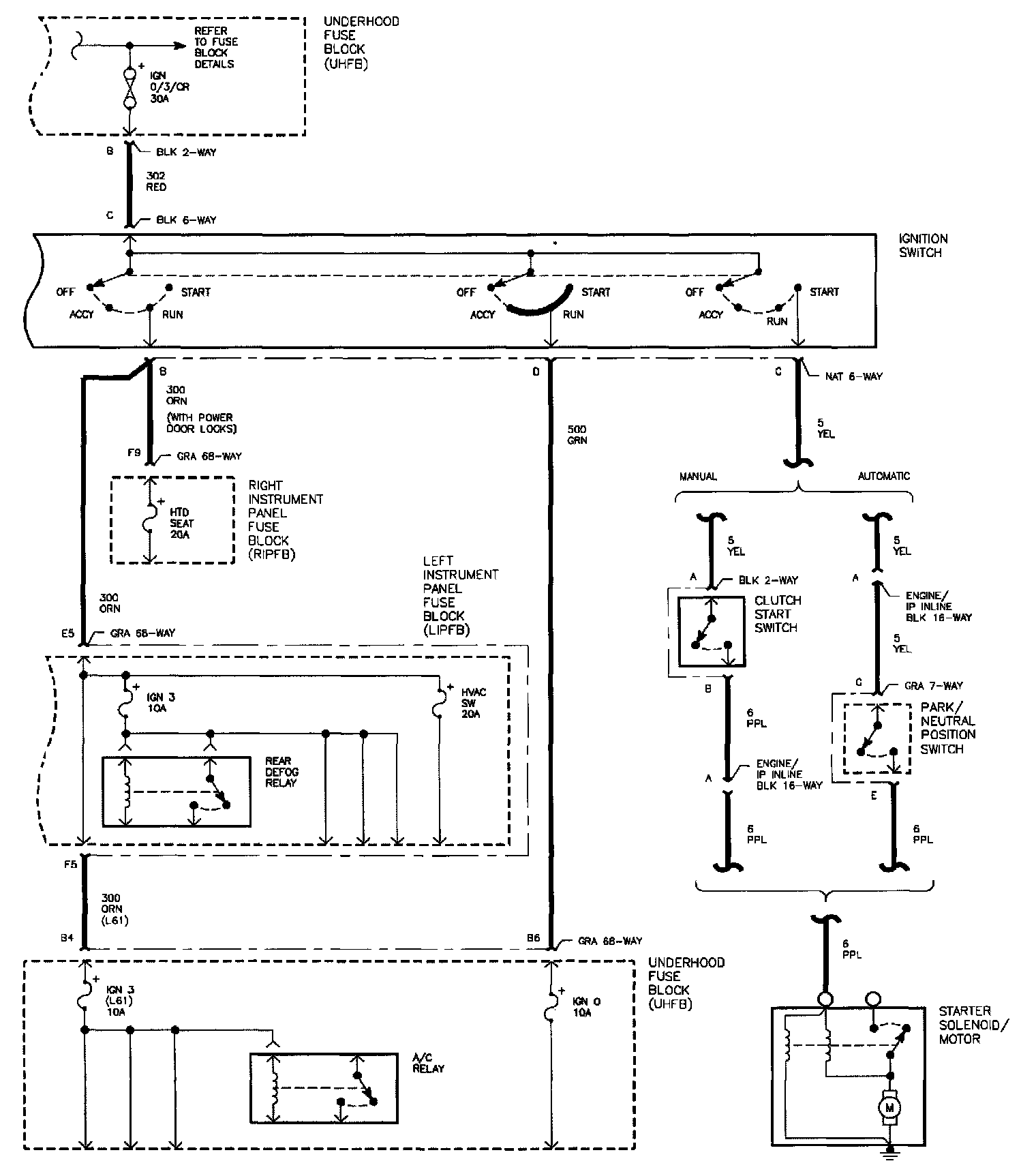

Fuse Block Details Schematics (Part 14 Of 16):

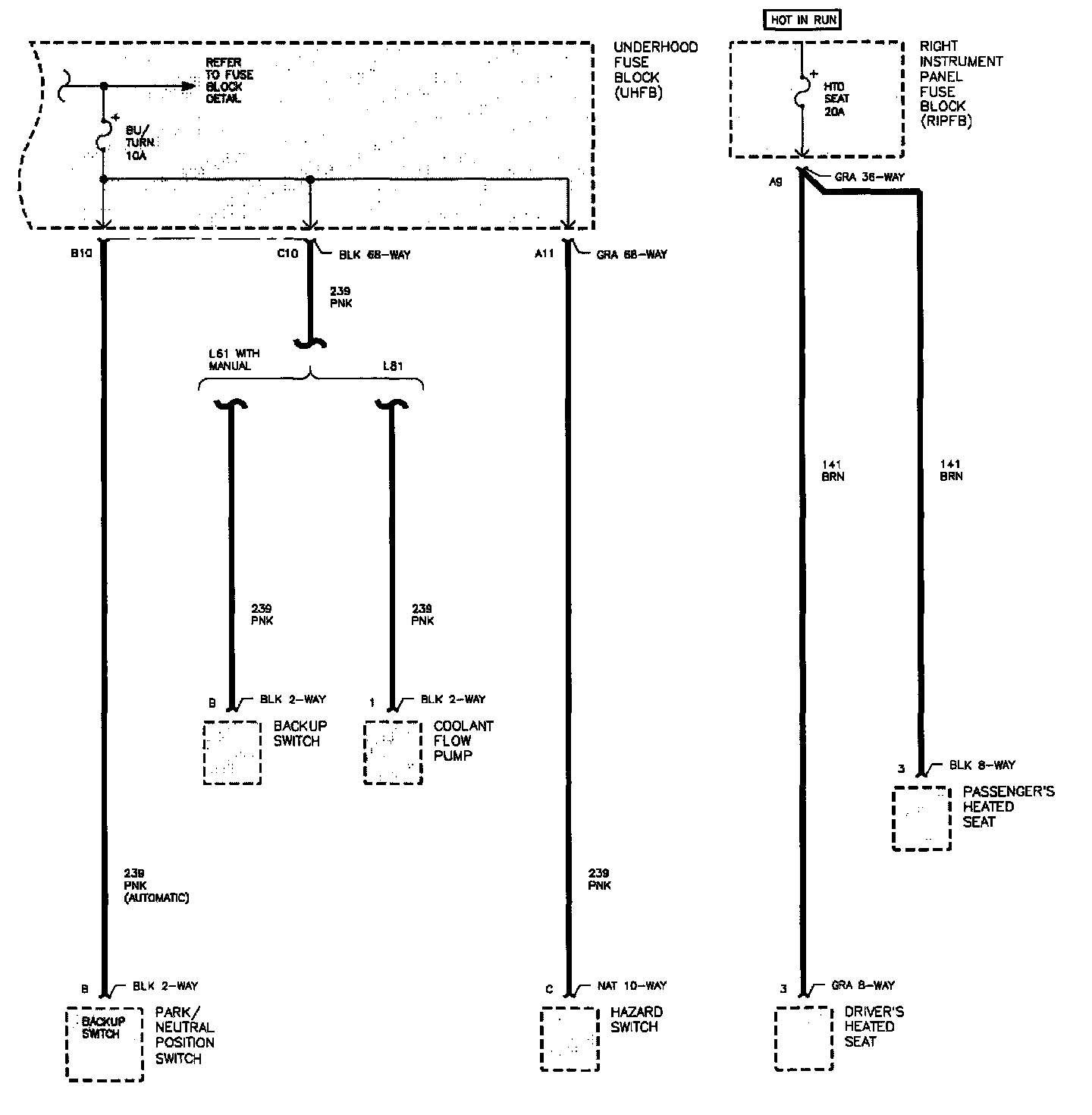

Fuse Block Details Schematics (Part 16 Of 16):
