Chart 5 - Both Rear Reading LP Inoperative In "DR" Or "ON" Position
Chart 5 - Both Rear Reading LP Inoperative In "DR" Or "ON" Position

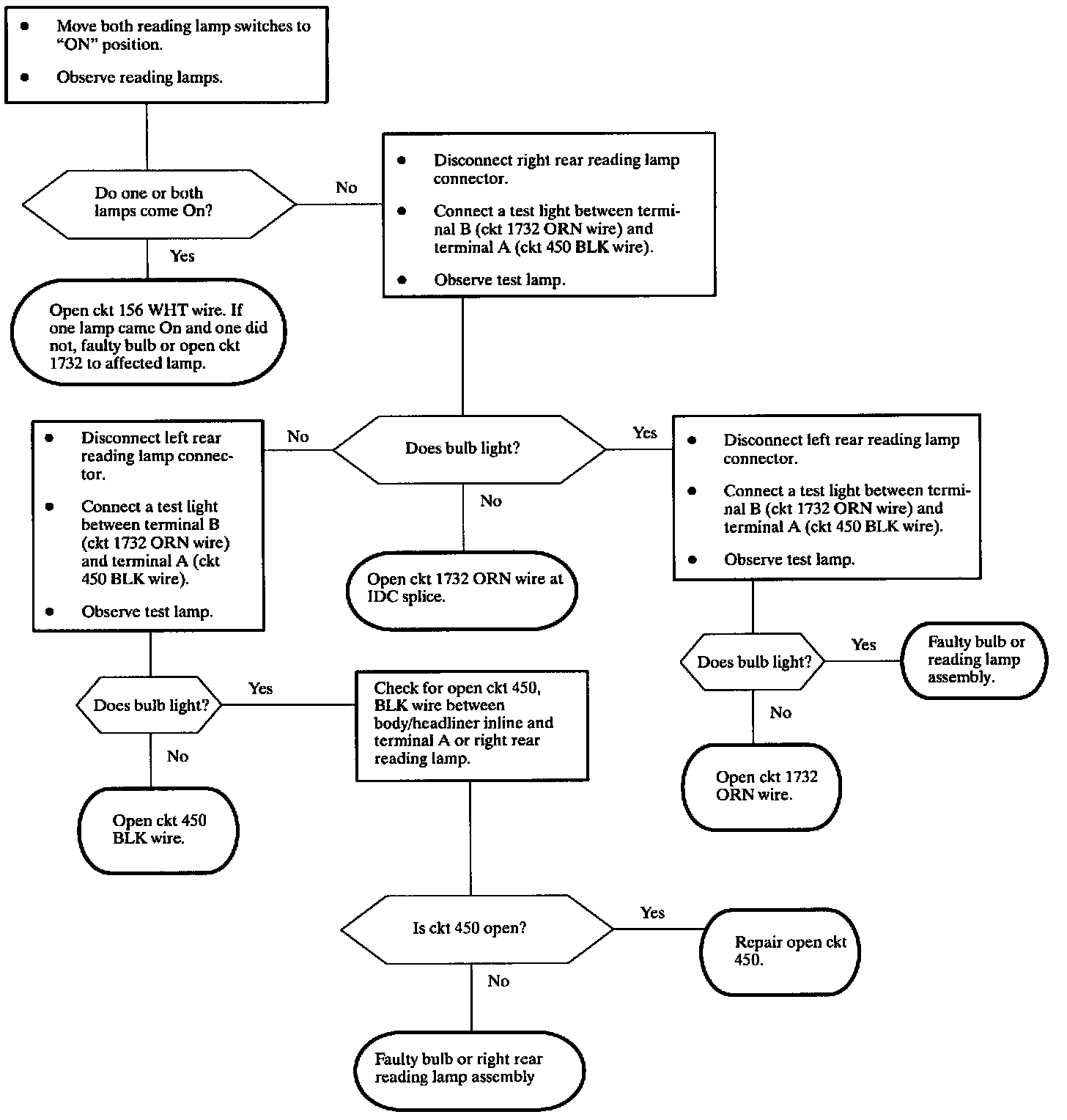

Diagnostic Chart 5:
