Chart 1 - All Interior Lamps Inoperative When Any Door Is Opened
Chart 1 - All Interior Lamps Inoperative When Any Door Is Opened

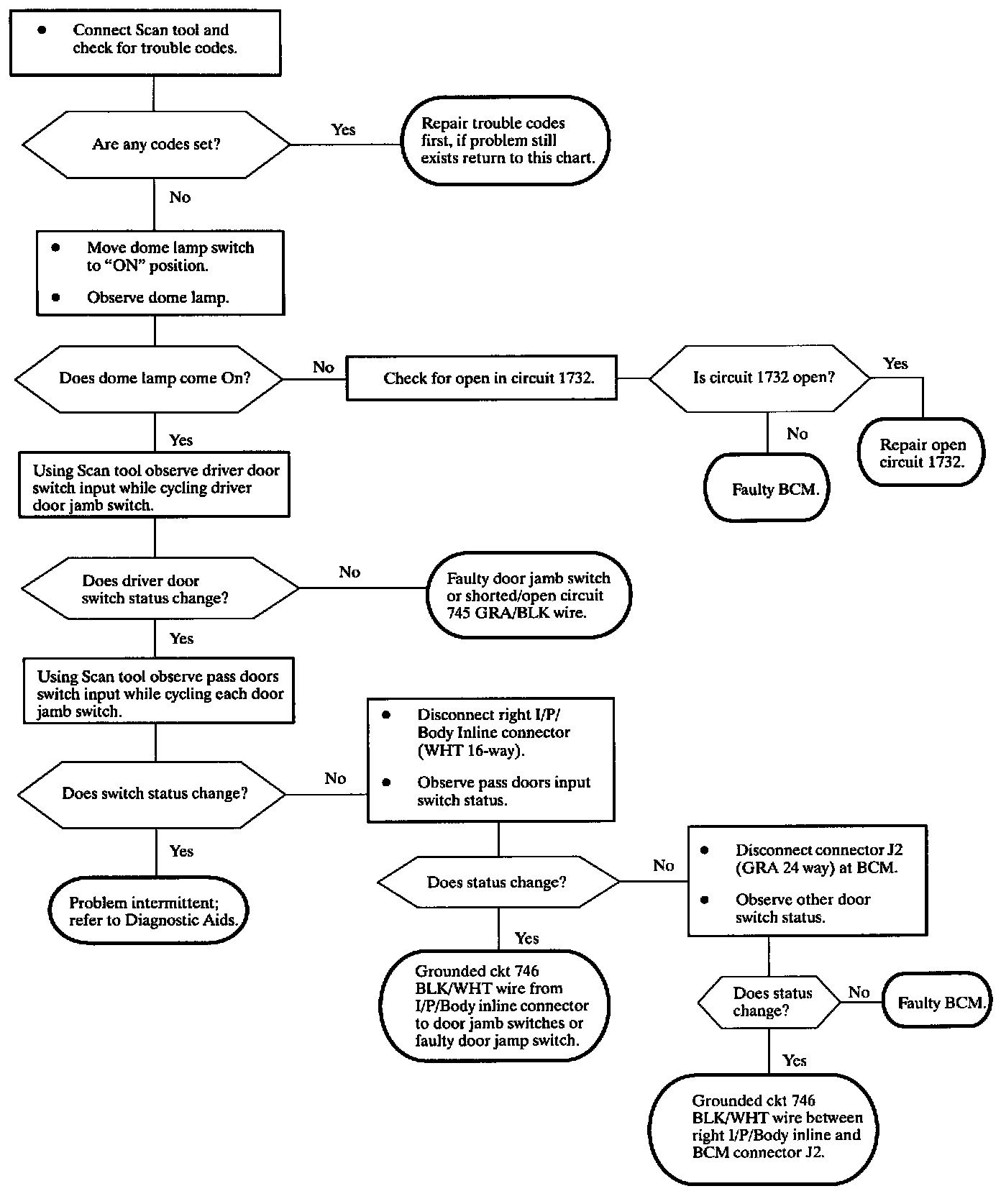

Diagnostic Chart 1:
