FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saturn
>>
2000
>>
LS2 V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
A Symptom Charts - Exterior Lamps
>>

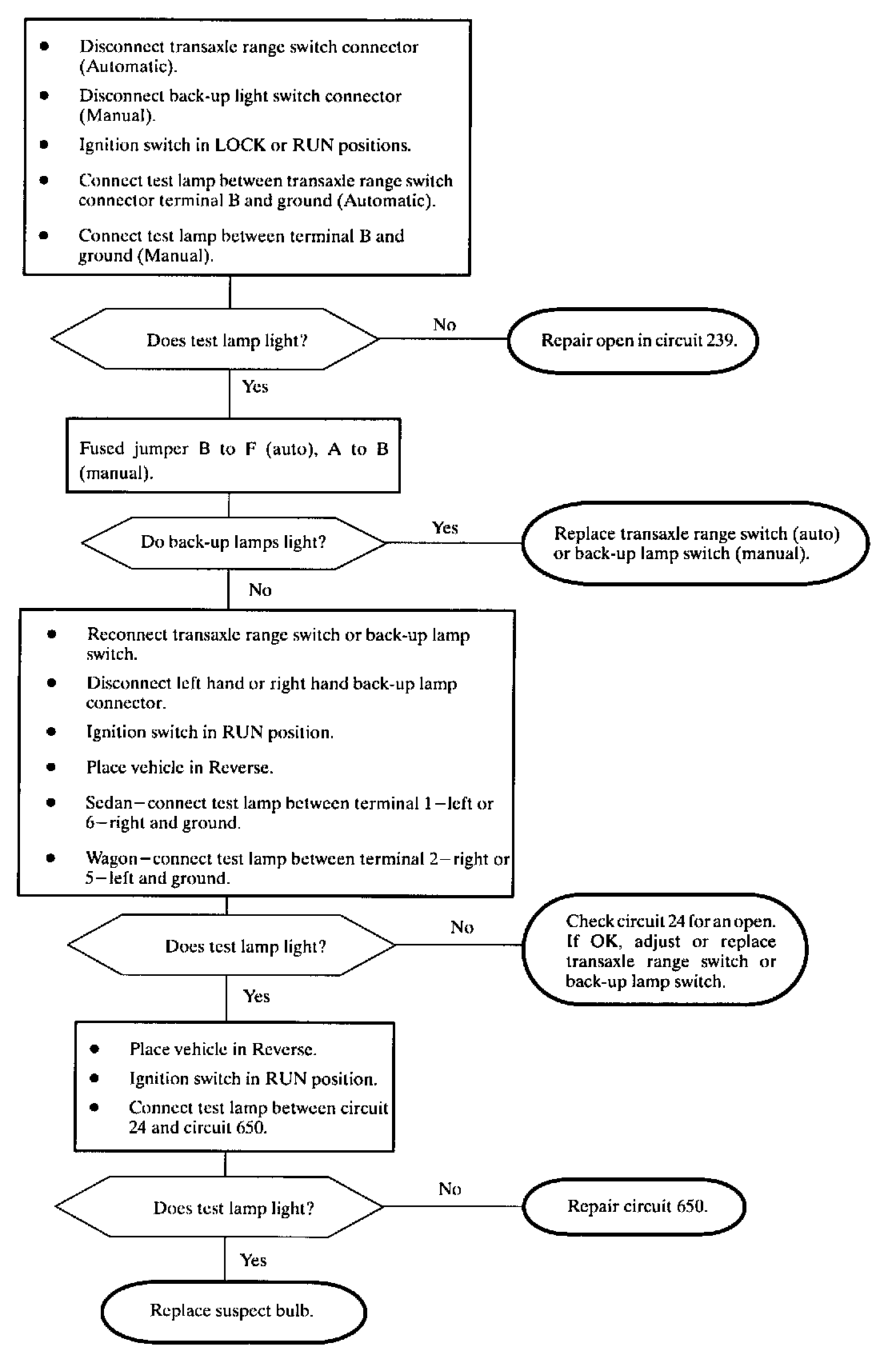

Chart 4 - Left Hand and Right Hand Back-Up Lights Are Inoperative
Chart 4 - Left Hand and Right Hand Back-Up Lights Are Inoperative
Diagnostic Chart 4:
