Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> Interior Lamps Schematics With RKE

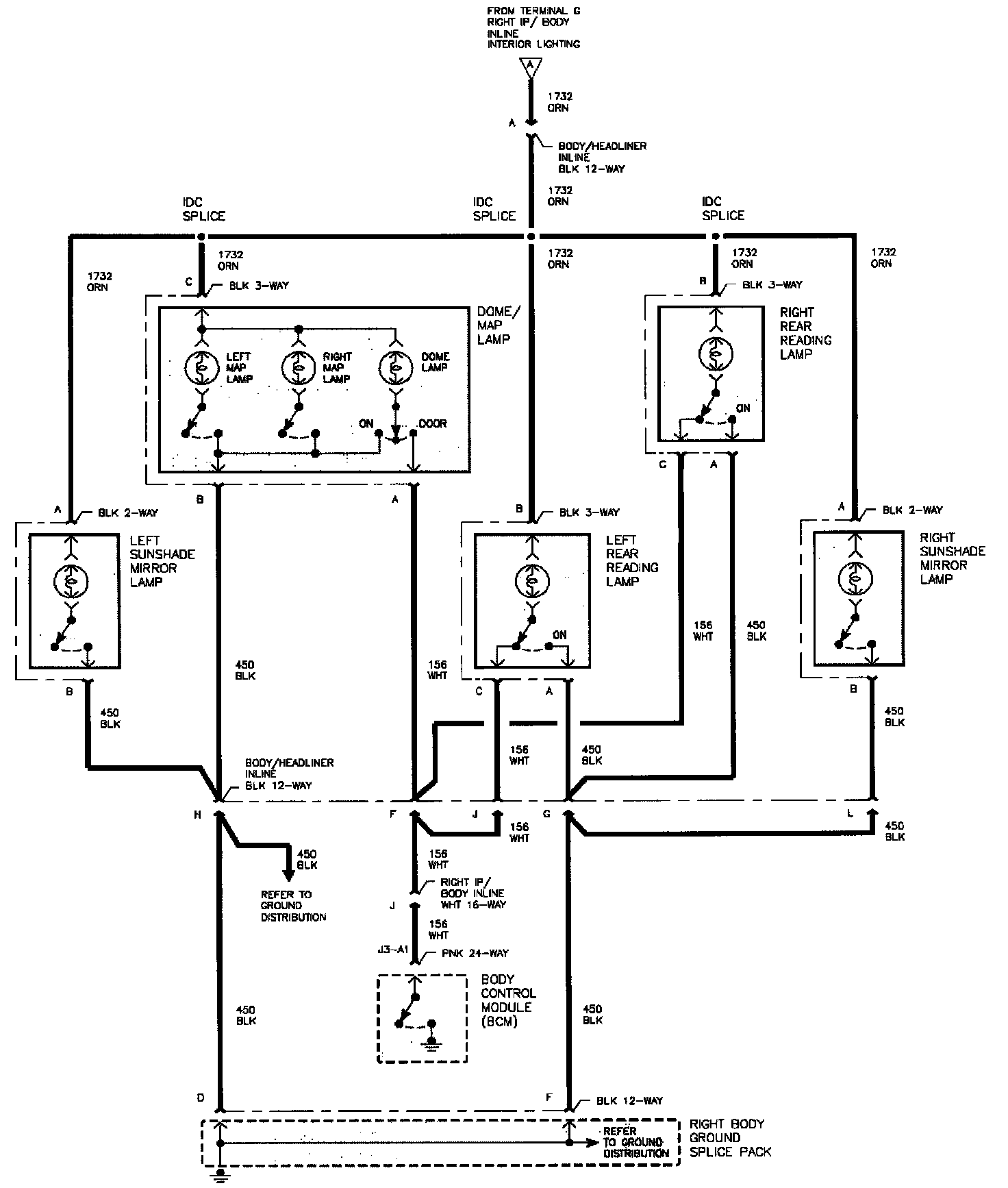

Interior Lamps Schematics With RKE

Interior Lamps Schematics With RKE:
