Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> A Symptom Diagnosis - Table - Instrument Panel (I/P) Cluster

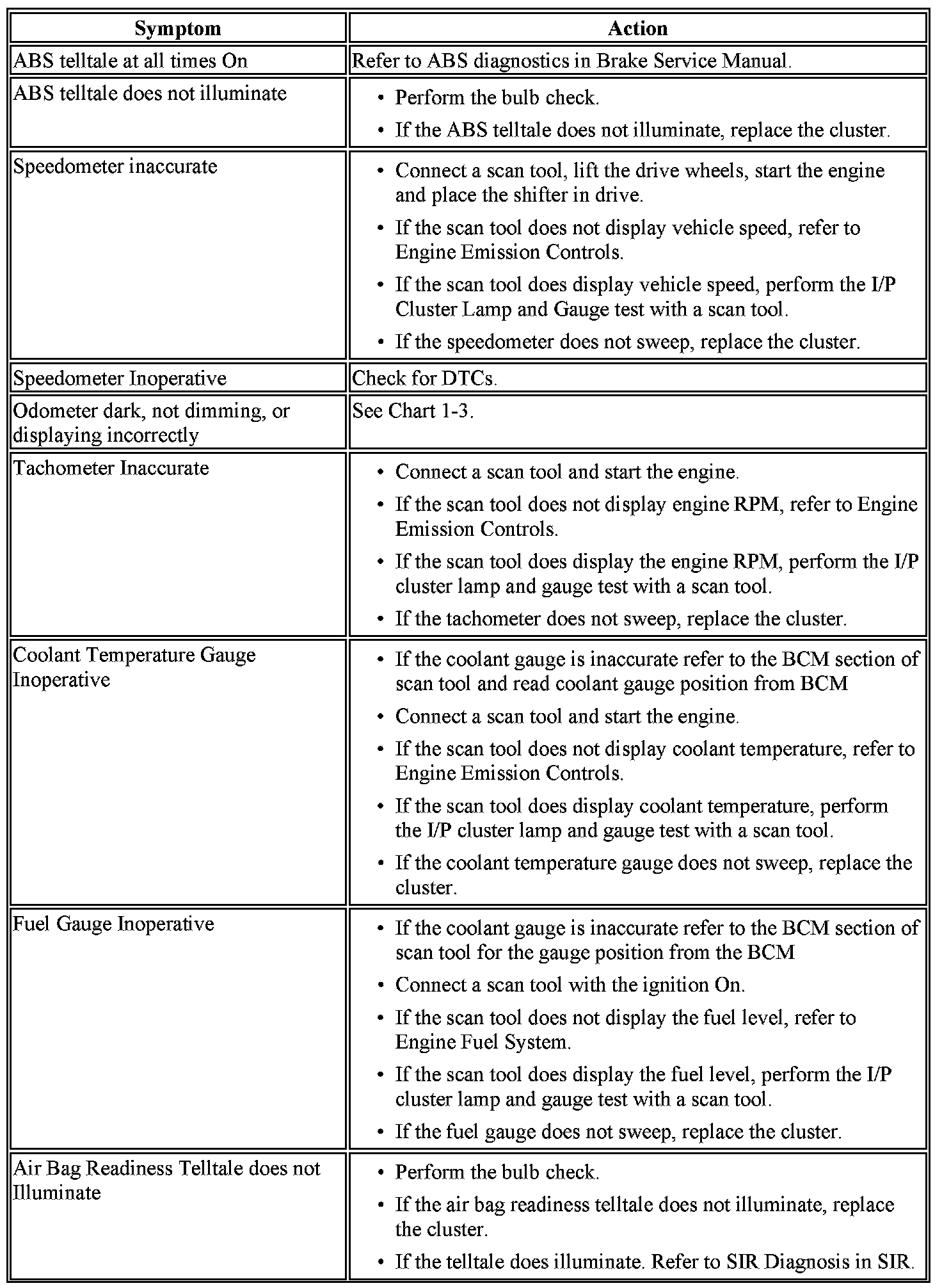

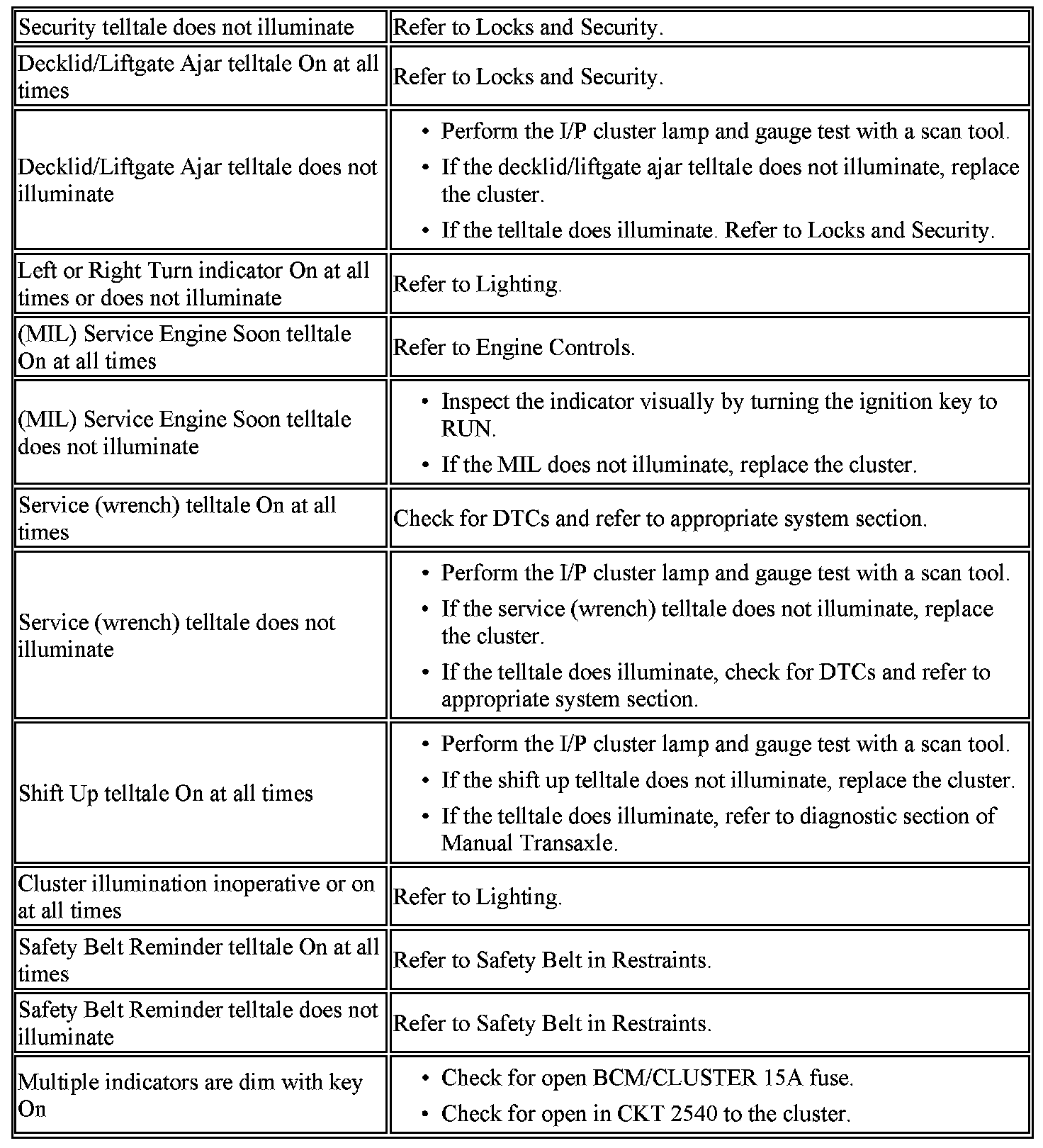

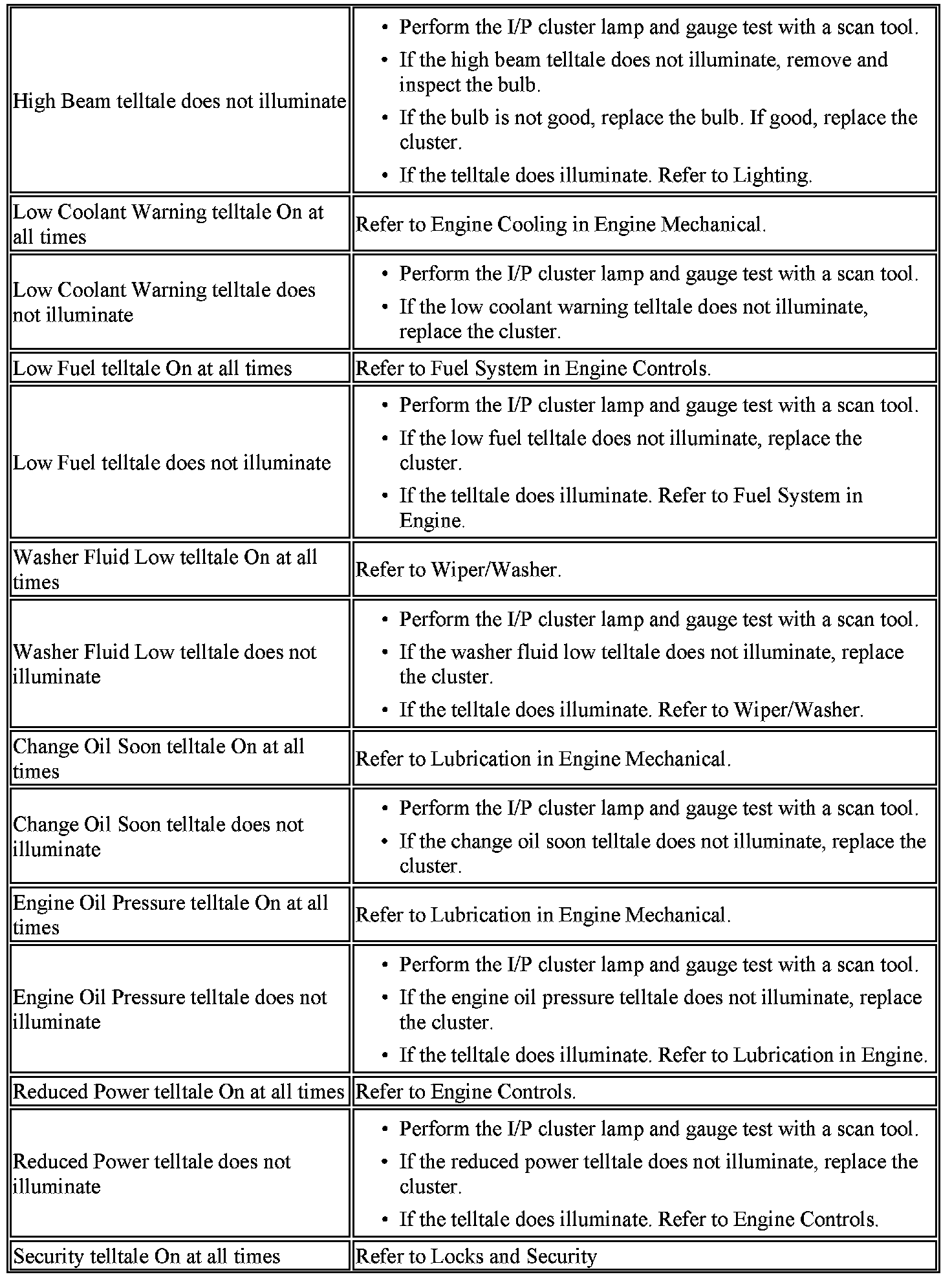

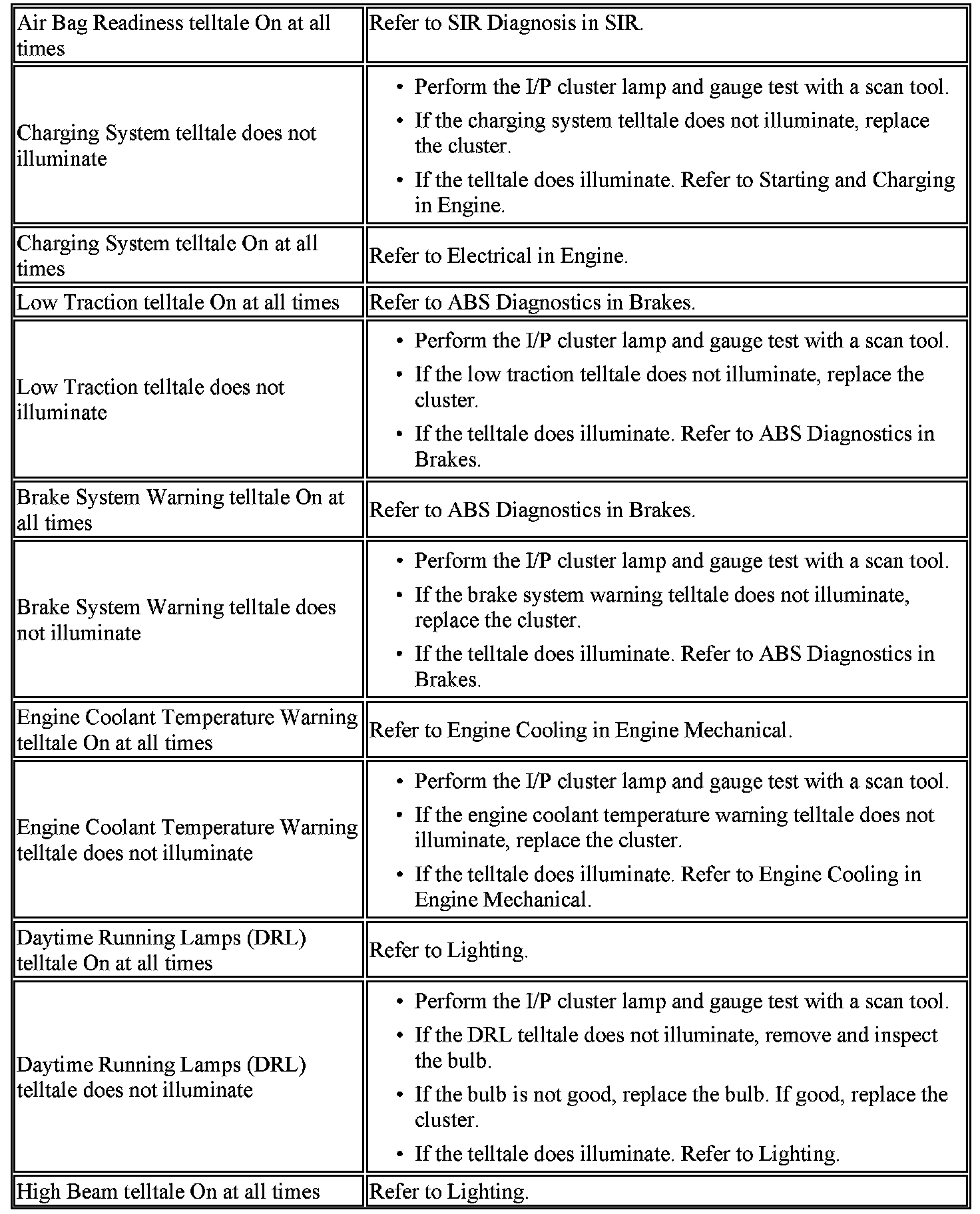

A Symptom Diagnosis - Table - Instrument Panel (I/P) Cluster





Instrument Cluster Diagnosis
