Home >> Saturn >> 2000 >> LS2 V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Charts - Symptoms - HVAC System- Manual >> Chart 10 - A/C or Recirc Switch Indicator Lamps Do Not Light

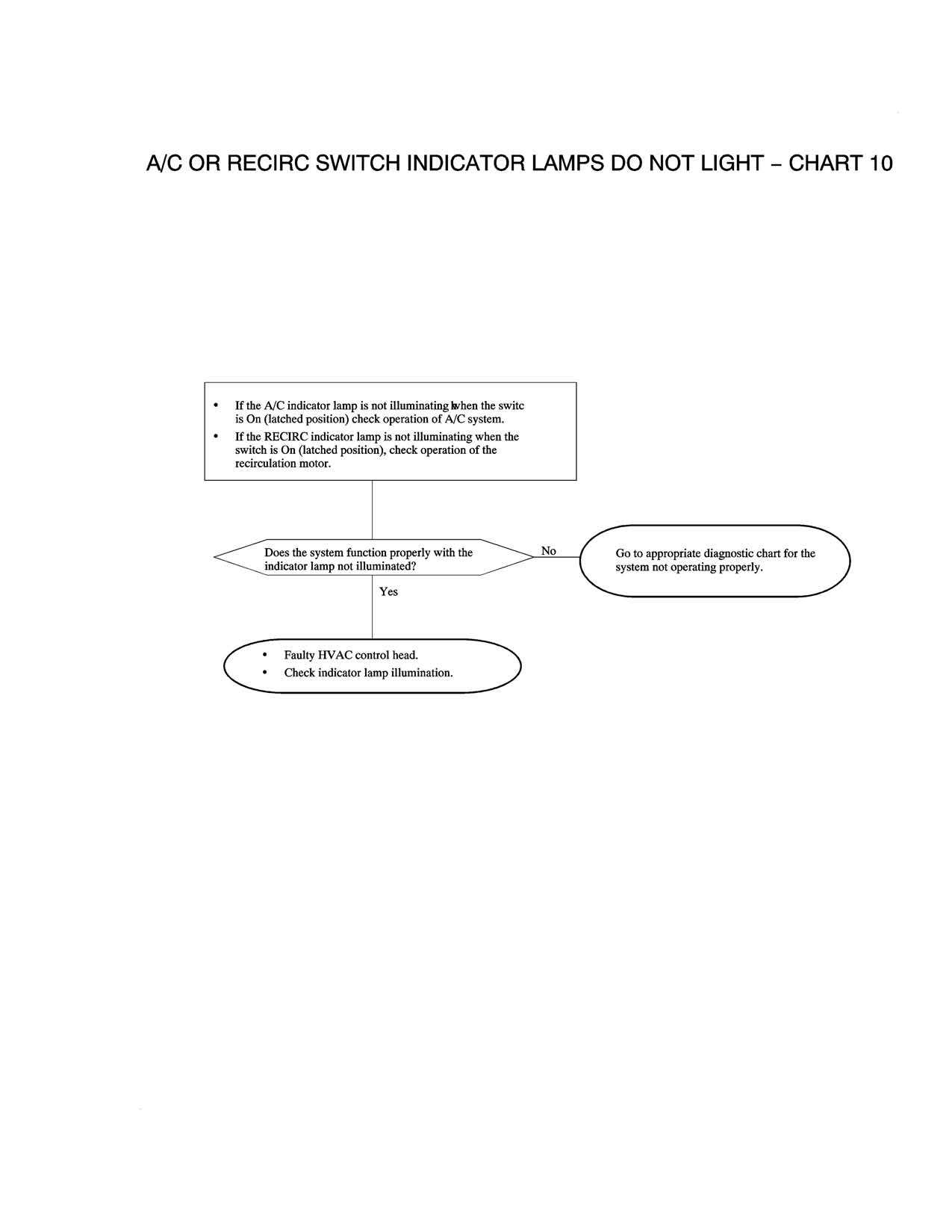

Chart 10 - A/C or Recirc Switch Indicator Lamps Do Not Light
