Normal System Performance Service Stall

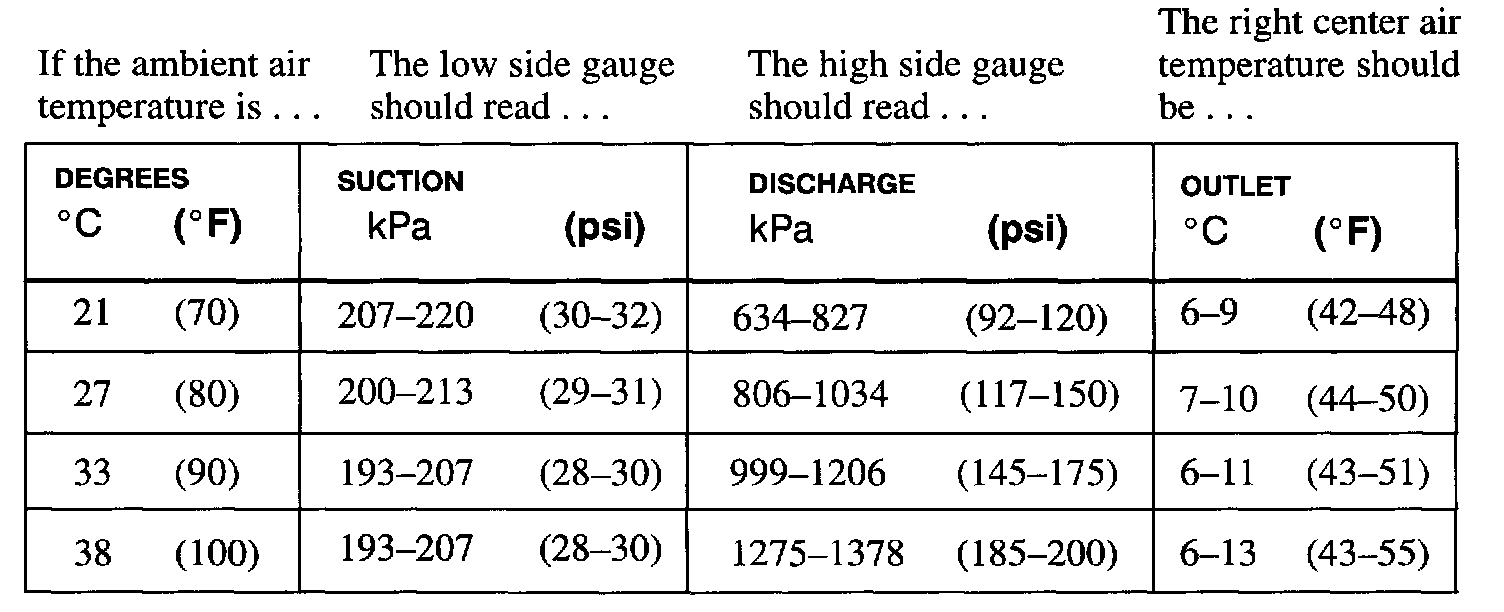

Normal System Performance 72 Km/h (45 MPH):

IMPORTANT:
^ To ensure accurate pressure and temperature readings make sure the vehicle is properly set up to run the performance test. (Refer to vehicle set up.) All test parameters must be followed to obtain accurate readings.
^ Use a refrigerant identifier to verify refrigerant purity. Non-condensable gases or refrigerant substitutes will affect system pressure/temperature readings.
