System Condition Charts - HVAC System - Manual
>>

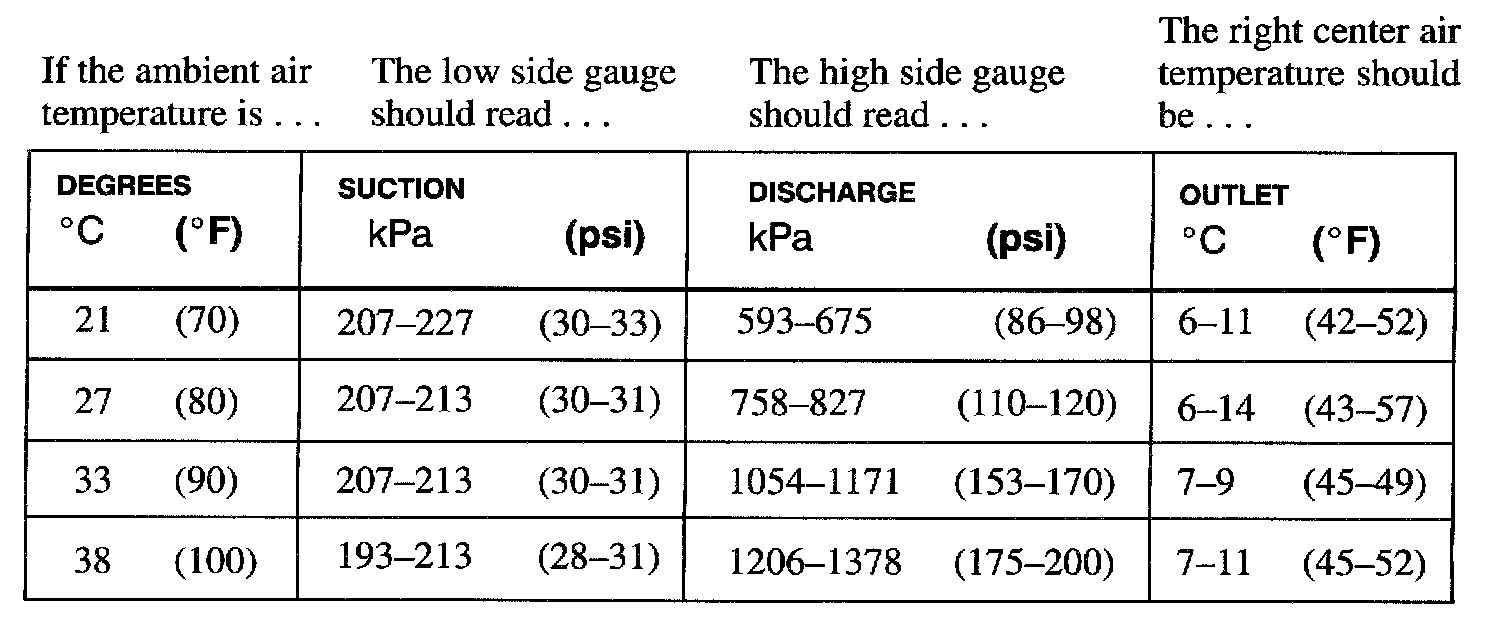

Normal System Performance 72 Km/H (45 MPH)
Normal System Performance 72 Km/H (45 MPH)
Normal System Performance 72 Km/h (45 MPH):
Normal System Performance 72 Km/h (45 MPH):
