Performance Chart - HVAC System - Manual
Performance Chart - HVAC System - Manual

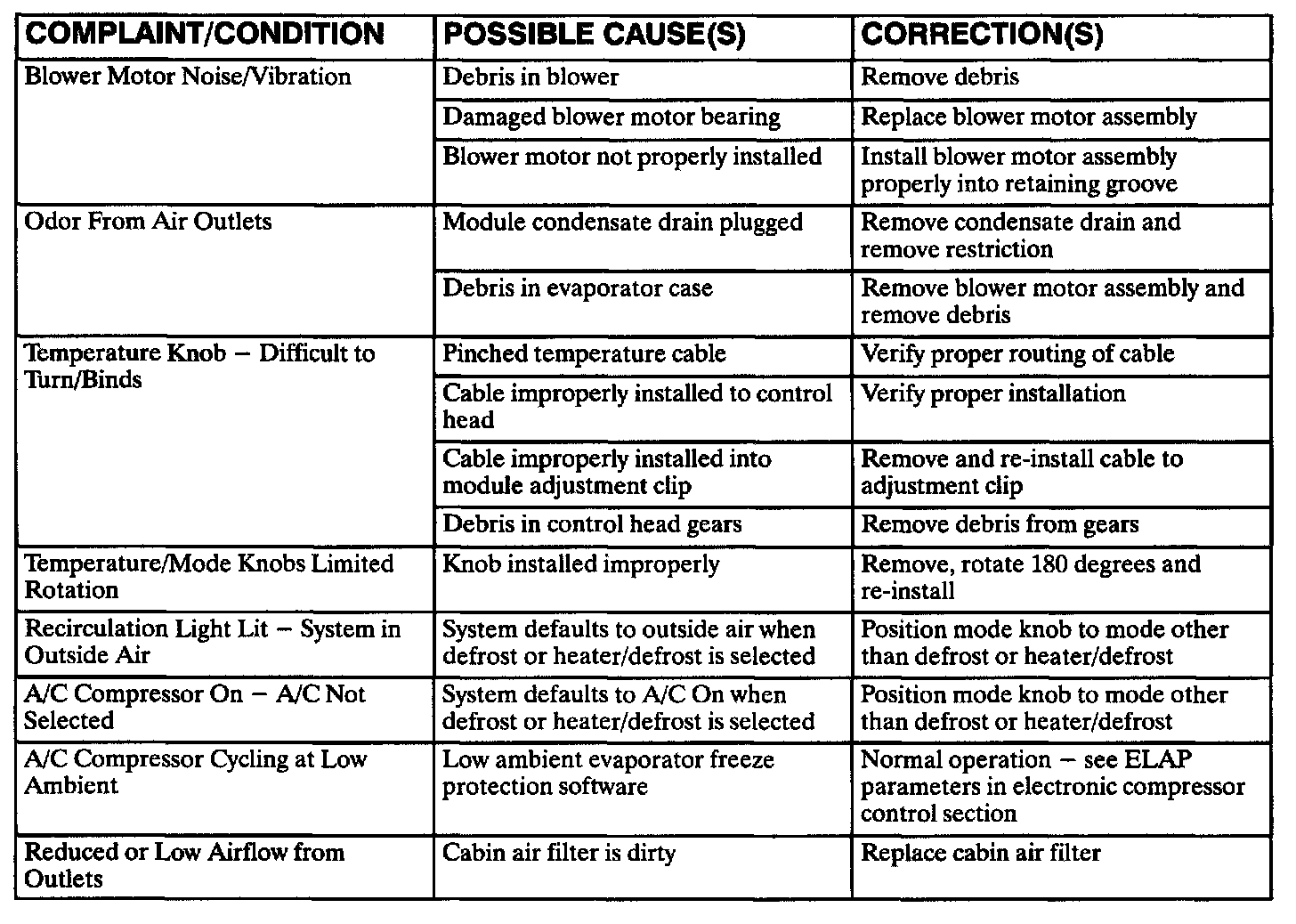

HVAC Performance Chart:
