Service Fitting Valves

SERVICE FITTING VALVES

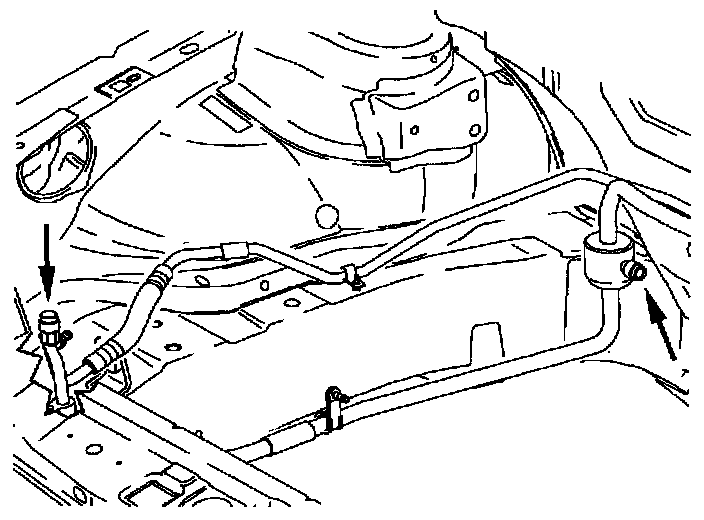

The A/C refrigerant system has a high pressure (discharge) and a low pressure (suction) service fitting valve. These valves provide access to both sides (high and low pressure) of the system. Always reinstall the protector cap on the service fitting valves after servicing the A/C system, to prevent refrigerant from escaping.

IMPORTANT: Service fitting caps are the primary seals for the service fitting valves. They must be Installed and tightened with O-ring seals in place to prevent refrigerant leaks.
